Coaxial Cable CB113 250m, EMOS

Name: Coaxial Cable CB113 250m, EMOS
Brand: EMOS
SKU: U-2337322
Price: 0.88 EUR
Availability: InStock

Номер продукта: S5262

Марка

EMOS

Больше похожих продуктов

Ищите "Coaxial Cable"

Ценовые границы

Количество	Стоимость с НДС (шт.)
1+	€0.88€0.88
B2B продажи

2025-01-13 Планируемая доставка, если Вы закажете сейчас

Сроки доставки

2025-01-13 Планируемая доставка, если Вы закажете сейчас

Товар заказывается со склада поставщика. Если поставщик не сможет доставить данный товар до указанной даты, мы информируем Вас по электронной почте.

Доступно

Склад поставщика

Доставка на дом

После передачи товара курьеру мы сообщим вам об этом по электронной почте.

Более 25,00 €

(Заказы до 1000 кг)

Бесплатно

К 25,00 €

(Заказы до 1000 кг)

4,50 €

Получение в почтомате

После передачи товара курьеру мы сообщим вам об этом по электронной почте.

3,50 €

Описание товара

Coaxial Cable CB113 250m, EMOS

Спецификации

Артикул

U-2337322

Штрих-коды

8595025304902

Марка

EMOS

NomNr

S5262

Описание товара от поставщика

Product description

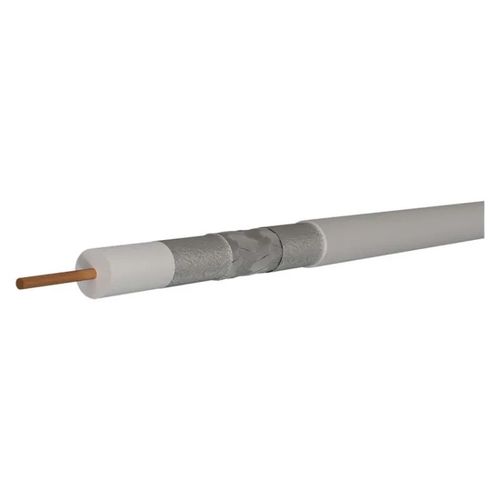

Highest quality coaxial cable with central conductor made of pure bare copper, with TRISHIELD triple shielding made of tin-plated CuSn copper, white colour. The cable is designed for demanding applications transmitting CCTV, TV or SAT signal.
Since the cable's shielding has excellent effectiveness (= very low radiation), the cable can be used to conduct very powerful signal, thus effectively increasing the distance across which is can transfer signal.
The high-quality shielding eliminates problems with convergence of multiple cables across great distances.
Thanks to the materials used for the central conductor and braiding, the cable is extremely resistant to weather conditions, humidity and corrosion. Ideal for demanding wiring in the house or flat.

Параметры товара поставщика

Product code

S5262

APE = air dielectric

capacity (pF/m)

coaxial cable type

CB113

color cable sheath > Cable sheath color

white

colour of insulation of power conductors

not stated

construction of power conductors

not stated

cross-section of power conductors

not stated

dangerous substances

none

diameter of cable sheath

7,05 mm

diameter of the inner conductor

1.13 mm

dielectric type, diameter

FPE 4.8 mm

factor of shortening

0.85

FPE = Foam dielectric

yes

impedance

75 Ohm

insulation of power conductors

not stated

insulation resistance between the cores at 20 °C (MOhm/km)

1 000

intended use

terciary distribution CATV, SAT

material of the cable jacket

PVC

material of the inner conductor

copper (Cu)

material of the shielding

tinned cooper (CuSn)

max. attenuation at 20 °C (dB/100 m) 1 000 MHz

19.3

max. attenuation at 20 °C (dB/100 m) 10 MHz

2.2

max. attenuation at 20 °C (dB/100 m) 100 MHz

5.8

max. attenuation at 20 °C (dB/100 m) 2 000 MHz

29.5

max. attenuation at 20 °C (dB/100 m) 450 MHz

12.5

max. attenuation at 20 °C (dB/100 m) 650 MHz

15.3

max. attenuation at 20 °C (dB/100 m) 860 MHz

18.5

max. DC resistance at 20 °C (Ohm/km) - inner core

18.5

max. DC resistance at 20 °C (Ohm/km) - outer core

38.5

min. bend radius single/multiple

35/70 mm

min. return loss at 20 °C (dB) 10 to 300 MHz

min. return loss at 20 °C (dB) 600 to 900 MHz

min. return loss at 20°C (dB) 300 to 600 MHz

min. shielding attenuation (dB) 10 ~ 800 MHz

>95

mounting temperature

+5 °C to +60 °C

number of braiding wires

144× 0,12 mm

number of shieldings

packaging

250 m, reel box

PE = polyethylene dielectric

not stated

PES = layer film

reaction to the fire

Eca

recommended types of connectors - F pressing

*K7220

recommended types of connectors - F screwing

*K7351

shielding diameter

144× 0,12 mm2

shielding I. foil

1× Al/PES

shielding II. foil

Al/PES spiral

shielding protection

>84 %

storage temperature

-20 °C to +75 °C

suitable for outdoor use

type of packaging - labeled yardage > Type of packaging - labeled meters

1–250 m

type of packaging - length

250 m

type of packaging - type of coil

PVC reel in paper box

UV resistant

warranty period

5 years

weight (kg/km)

41.5

Brand

EMOS

Supplier's product code

S5262

Product ID

U-2337322
