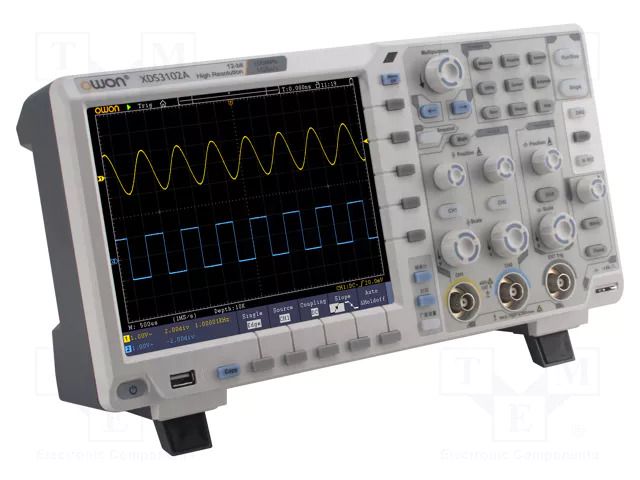

Oscilloscope: digital; Ch: 2; 100MHz; 1Gsps; 40Mpts; LCD TFT 8" OWON
Tootekood: XDS3102A/B
Rohkem sarnaseid tooteid
Kättetoimetamise tähtajad
Kulleriga koju
Kulleriga koju
Üle 25,00 € (Tellimused kuni 1000 kgs) | Tasuta |
25,00 €-le (Tellimused kuni 1000 kgs) | 4,50 € |
Kohaletoimetamine DPD pakiautomaatidele
Kohaletoimetamine DPD pakiautomaatidele
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.
3,50 €
Kauba kirjeldus
Oscilloscope: digital; Ch: 2; 100MHz; 1Gsps; 40Mpts; LCD TFT 8" OWON
Kasulik informatsioon
Tehnilised andmed
Laokood
U-2180655
NomNr
XDS3102A/B
Tarnija toote kirjeldus
Oscilloscope: digital; Ch: 2; 100MHz; 1Gsps; 40Mpts; LCD TFT 8"
Kasulik informatsioon
Tarnija toote parameetrid
Product code
XDS3102A/B
Supplier's product code
XDS3102A/B
Product ID
U-2180655
Additional functions
frequency meter
Band
100MHz
Battery/ rechargeable battery
rechargeable battery Li-Ion 3,7V x1
Body dimensions
340x177x90mm
Connector
VGA + AV
Connectors for the country
Europe
Display resolution
800x600
Input coupling
AC, DC, GND
Input impedance
1MΩ/15pF
Input sensitivity
1mV/div...10V/div
Interface
LAN
Kind of display used
LCD TFT 8"
Manufacturer
OWON
Manufacturer series
XDS
Max. input voltage
300V
Measurement memory
100
Measuring instrument features
protocols analyse: I2C, CAN, SPI, RS232/UART
Memory record length
40Mpts
Number of channels
2
Power consumption
15W
Power supply
rechargeable battery Li-Ion 3,7V x1
Related items
XDS-SOFTBAG
Rise time
≤3.5ns
Sampling
1Gsps
Software
LabVIEW
Standard equipment
oscilloscope probe (1 per channel)
Supply voltage
100...240V AC
Time base
2n...1ks/div
Type of oscilloscope
digital
Touchpad
yes
Trigger
falling-edge
Trigger modes
single
Vertical resolution
12bit
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
Product not available.
