Kauba kirjeldus

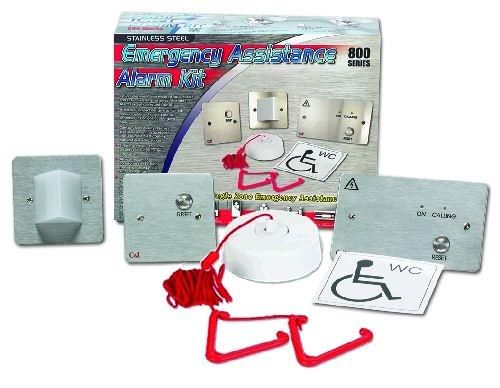

Disabled WC Call System NC951
Tehnilised andmed
Laokood
U-2528950
NomNr
NISNC951
Tarnija toote kirjeldus
- The UK's market-leading Disabled Persons Toilet Alarm kit.
- Includes everything required for a BS8300 clause compliant emergency assistance alarm.
- Attractively designed, easy to install and simple to use.
- Allows a distressed person to raise an alarm in the event of an emergency. To operate, the user pulls the cord of a ceiling pull to activate a light and sounder outside the WC and on the system's Call Controller.
- New ‘Call Accept’ functionality allows staff to send an intermittent call acknowledgment signal inside the WC to confirm help is on the way.
- Includes an NC943B 12V 140mA Call Controller c/w standby battery and relay, NC807C Ceiling Pull, NC806CS Overdoor Light c/w Sounder, NC809DBBT Accessible Toilet Reset Point c/w Sounder and NC949 Accessible WC Sticker.
- Can be wired in 4 core stranded security cable.
- Can also be used as a single zone emergency assistance alarm in changing rooms, solariums, interview rooms, reception areas and more.
| Mains supply | 230V 50/60Hz (23mA max. current). 50Hz frequency. |
| Internal power supply | 12V d.c. |
| Total output current limited to | 140mA. |
| Quiescent current | See individual device listings for NC943B, NC807C, NC806CS and NC809DBBT. |
| Max battery size and type | NC943B includes an onboard 500mA rechargeable standby battery that will power the system for up to 24 hours standby and 15 minutes alarm running time. |
| Alarm current | 40mA (all NC951 devices, this includes 18mA Zone current). |
| Auxiliary relays | NC943B has one set of volt free relay contacts (NO/C/NC). Relay activates when a call is received by the controller. Rated at 30V d.c. @ 1A. |
| Indicators | NC807C & NC809DBBT have red Reassurance LEDs; NC806CS has twin red Alarm LEDs. NC943B has a red Alarm and green Supply Present LED; |
| Controls | NC943B has a link-selectable Call Accept/Reset button; NC807C has a pull cord with two bangles to generate a call; NC809DBBT has a Reset button. |
| Expansion connections | For applications requiring more than one point of call (e.g. at the WC and the wash basin), up to 3 ceiling pulls can be daisychained together. |
| Call acknowledgement functionality | Yes. |
| Onboard Sounder | Yes (on NC809DBBT, NC806CS and NC943B). |
| Onboard Infrared Receiver | No. |
| Product dimensions (mm) | 147 W x 87 H x 93 D (NC943B); 87 W x 87 H x 68 D (NC806CS); 87 W x 87 H x 24 D (NC809DBBT). Ceiling pull measures 93mm diameter x 27 D. |
| Packaging dimensions (mm) | 285 W x 201 H x 55 D mm (size of NC951 kit box containing all items). |
| Construction & finish | Plastic. |
| IP Rating | IP41 (all wall mounting devices); IP21 (ceiling pull). |
| Weight | 0.60kg. |
| Operating conditions/temperature | -5ºC to +40ºC. Max. relative humidity 95% non-condensing. |
| Notes | The NC951 contains everything required for a stand-alone single zone accessible toilet alarm system. For multi-zone systems consider using one of our NC910 or NC920 range of 10-20 Zone Call Controllers. |
