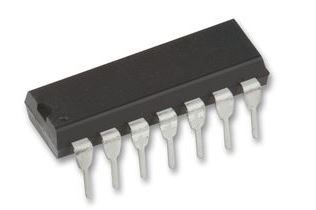

Integrated Circuit 74HC02 DIP14

The TEXAS INSTRUMENTS SN74HC02, also known as a Quadruple 2-Input Positive-NOR Gates, is a high-performance logic IC that offers several key advantages.

Main Parameters and Functions

This integrated circuit comprises four independent 2-input NOR gates. Each gate executes the Boolean function Y = A + B using positive logic. This means the output (Y) is LOW only when both inputs (A and B) are HIGH; otherwise, the output is HIGH.

Applications

• Alarm/tamper detection circuits
• S-R latches

Its versatility makes it suitable for a wide range of digital logic applications.

Why Choose This Product?

• Buffered inputs: Improves noise immunity and signal integrity.
• Wide operating voltage range: Operates reliably across a broad voltage spectrum (2V to 6V).
• Wide operating temperature range: Functions correctly in diverse temperature conditions (-40°C to +85°C).
• High fanout: Can drive up to 10 LSTTL loads.
• Low power consumption: Significantly reduces power consumption compared to LSTTL logic ICs.

The 74HC02 DIP14 offers a robust and efficient solution for various digital logic designs. Its wide operating ranges and high performance make it a reliable choice for diverse applications.

This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:

• Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
• Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
• Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
• Name or Model Discrepancies: AI may misrepresent the product name or model.

If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail toš you: [email protected].
