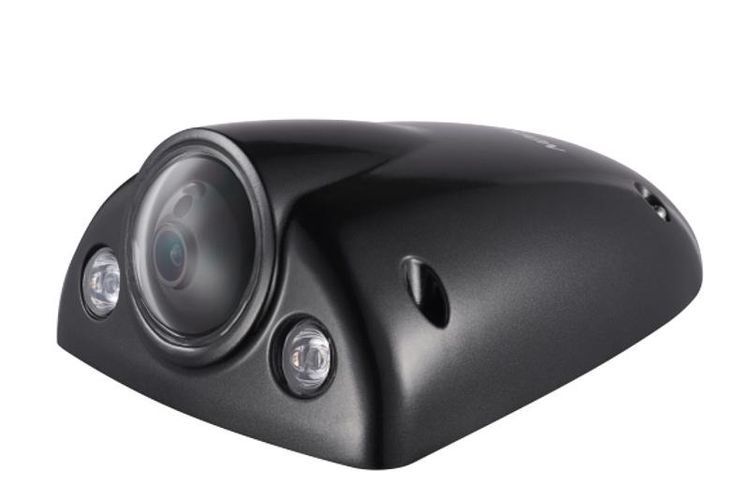

IP mobile camera DS-2XM6522G1-ID F2.8
Kättetoimetamise tähtajad
Kaup tellitakse tarnija laost. Kui tarnijal ei ole võimalik tarnida kaupa näidatud kuupäevani, informeerime teid epostitsi.
 Saadaval | Tarnija ladu |
Kulleriga koju
Kulleriga koju
Üle 25,00 € (Tellimused kuni 1000 kgs) | Tasuta |
25,00 €-le (Tellimused kuni 1000 kgs) | 4,50 € |
Kohaletoimetamine DPD pakiautomaatidele
Kohaletoimetamine DPD pakiautomaatidele
3,50 €
Kauba kirjeldus
Tehnilised andmed
Tarnija toote kirjeldus
- IP camera 2MP
- 2.8mm(~105°) lens
- 120 dB WDR
- IR up to 10m
- H.265+
- IP68, IK10
- PoE
- Camera
- Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
- P/N
PAL: 25fps
NTSC: 30fps
- Image Sensor1/2.8″ Progressive Scan CMOS
- Shutter Speed 1/3 s to 1/100,000 s
- Case TypeWedge
- Slow ShutterYes
- Resolution2MP
- Day & NightIR Cut Filter
- Angle Adjustment
2.8 mm: pan: -15° to 15°, tilt: 15° to 30°, rotate: -90° to 90°
4 mm/6 mm: pan: -15° to 15°, tilt: 0° to 30°, rotate: -90° to 90°
- Lens
- Focal Length & FOV
2.8 mm: horizontal FOV 105°, vertical FOV 56°, diagonal FOV 126°
4 mm: horizontal FOV 87°, vertical FOV 44°, diagonal FOV 104°
6 mm: horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62°
- Lens MountM12
- Lens TypeFixed Lens
- Max. Aperture
2.8 mm/4 mm/6 mm: F 1.6
- Illuminator
- Smart Supplement LightYes
- IR Wavelength850nm
- IR RangeUp to 30m
- Video
- Max. Resolution 1920 × 1080
- Main Stream
50Hz:25fps(1920 x 1080, 1280x960, 1280 x 720)
60Hz:30fps(1920 x 1080, 1280x960, 1280 x 720)
- Sub-Stream
50Hz:25fps(704 x 576, 640x480, 352 x 288, 320x240)
60Hz:30fps(704 x 576, 640x480, 352 x 288, 320x240)
- Third Stream
50Hz:25fps(1920 x 1080, 1280x960, 1280x720, 704x576, 640x480, 352 x 288, 320x240)
60Hz:30fps(1920 x 1080, 1280x960, 1280x720, 704x480, 640x480, 352 x 240, 320x240)
- Video Compression
Main Stream: H.265 /H.264/H.264+/H.265+
Sub-Stream: H.265 /H.264 / H.264+/H.265+/MJPEG
Third Stream: H.265 /H.264/H.264+/H.265+
- Video Bit Rate
Main Stream: 256 Kbps to 12 Mbps
Sub-Stream: 256 Kbps to 4 Mbps
Third Stream: 256 Kbps to 12 Mbps
- H.264 TypeBaseLine Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region Of Interest (ROI)Support 2 fixed region for (main/sub) stream
- Network
- Protocols TCP/IP, HTTP, HTTPS, DHCP, DNS, DDNS , RTSP, SNMP, QOS, ISUP5.0, ISUP2.0
- Simultaneous Live View Up to 8 channels
- APIHIKSDK, ONVIF (PROFILE S, PROFILE G,PROFILE T), ISAPI
- User Management
Up to 16 users
3 levels: Administrator, Operator and User
- Web Browser IE8+, Chrome45+, Edge41+, Firefox45+
- Image
- Wide Dynamic Range (WDR)120 dB
- Smart IRNo
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night SwitchDay/Night/Auto/Schedule
- SNR＞50dB
- Image EnhancementBLC, HLC, 3D DNR
- Privacy Mask4 regions of privacy mask
- Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
- DNR 3D DNR
- Interface
- Ethernet Interface
Without -M: 1 RJ45 10M/100M self-adaptive Ethernet port
-M: 1 four-core M12 aviation plug
- SD Card StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
- AudioNo
- Alarm No
- RS-485No
- Reset KeyYes
- HeaterYes
- Event
- Linkage MethodUpload to FTP, notify monitoring center center, send email, trigger recording
- Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, TF card error)
- Smart Event
Line crossing detection,
Intrusion detection,
Region entrance detection,
Region exiting detection,
Unattended baggage detection,
Object removal detection,
Object detection: detects faces and upload images
Scene change detection, defocus detection
- General
- Product Dimension
Camera: 163.7 mm × 122.6 mm × 65.1 mm (6.4" × 4.8\" × 2.6\")
With package: 252 mm × 190 mm × 108 mm (9.9 × 7.5\" × 4.3\")"
- Power Interface
-I/ND: RJ45 interface, PoE power supply
-ID: Ø 5.5 mm coaxial power plug, DC
power supply
-IDM: two-core Molex connector, DC power supply
-IM/ND: four-core M12 aviation plug, PoE power supply
- Power Consumption
-ID, -IDM: 9~36 V DC, max. 10 W
-I/ND, -IM/ND: PoE: (802.3af, 36 V to 57 V), max. 10 W
- ProtectionIP68(IEC 60529-2013), IK10(IEC 62262:2002), IP69K(ISO 20653:2013)
- Power Supply
-ID, -IDM: 9-36V, two-core terminal block, reverse polarity protection&PoE802.3af;
-I/ND, -IM/ND: PoE: 802.3af, Type 1 Class 3
- Camera Material Metal
- Product Weight
Camera: Approx. 905 g (2.0 lb.)
With package: 1271 g (2.8 lb.)
- Startup and Operating Conditions -30 °C to 75 °C (-22 °F to 167°F), humidity less than 95% or less (non-condensing)
- LanguageSupport English, French, German, Russian, Italian, Korean, Portuguese, Spanish, Turkish, Polish,Czech
- General Function Anti-flicker, 3 streams, heartbeat, mirror, privacy mask
- Approval
- Electrical Safety ProtectionIK10(IEC 62262:2002）
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
- SafetyCB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
- Environment CE-RoHS (2011/65/EU);
- Automotive and RailwayEN50155-2017(EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2- 2:2007, IEC 60068-2-30:2005, IEC 61373:2010); EN45545 (EN 45545-2:2013+A1:2015); E-MARK (ECE R10)
