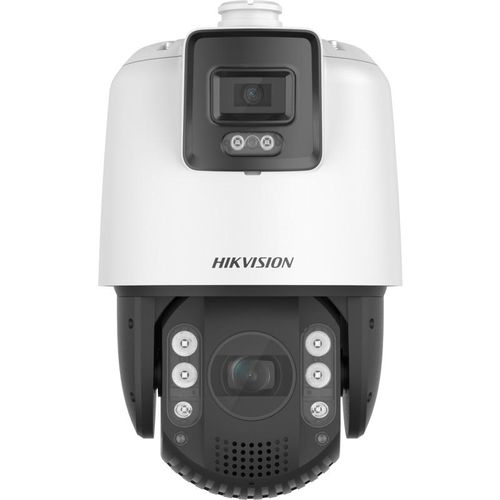

Hikvision TandemVu PTZ DS-2SE7C425MW-AEB(14F1)(P3)
Kättetoimetamise tähtajad
Kaup tellitakse tarnija laost. Kui tarnijal ei ole võimalik tarnida kaupa näidatud kuupäevani, informeerime teid epostitsi.
 Saadaval | Tarnija ladu |
Kulleriga koju
Kulleriga koju
Üle 25,00 € (Tellimused kuni 1000 kgs) | Tasuta |
25,00 €-le (Tellimused kuni 1000 kgs) | 4,50 € |
Kohaletoimetamine DPD pakiautomaatidele
Kohaletoimetamine DPD pakiautomaatidele
3,50 €
Tarnija toote kirjeldus
- Captures a large area and great details at the same time
- High quality imaging with 4 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Secures an expansive area with 25× optical zoom and 16× digital zoom
- Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
- Expansive night view with up to 200 m IR distance
- Supports 24 VAC & Hi-PoE
- Active strobe light and audio alarm to warn intruders off
- Camera
- Image Sensor[Bullet channel]: 1/1.8" Progressive Scan CMOS; [PTZ channel]: 1/1.8" progressive scan CMOS
- Max. Resolution[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
- Min. Illumination
[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;
[PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Speed1 s to 1/30,000 s
- Day & NightICR
- Zoom[PTZ channel] 25 × optical, 16 × digital
- Slow Shutteryes
- HLCyes
- 3D DNRyes
- Lens
- Focal Length[Bullet channel]: 4 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical
- FOV
[Bullet channel]: Horizontal field of view: 88.7°, Vertical field of view: 44.7°;
[PTZ channel]:
Horizontal field of view: 55° to 2.4° (wide-tele),
Vertical field of view: 33° to 1.4° (wide-tele),
Diagonal field of view: 61.5° to 2.8° (wide-tele)
- Focussemi-auto||manual||auto
- Aperture[Bullet channel]: F1.0; [PTZ channel]: F1.6
- Zoom Speed[PTZ channel]: approx. 3.6 s
- Illuminator
- Supplement Light Type[PTZ channel]: IR; [Bullet channel]: White Light
- Supplement Light Range[PTZ channel]: up to 200 m; [Bullet channel]: up to 30 m
- Smart Supplement LightYes
- PTZ
- Movement Range (Pan)360°
- Movement Range (Tilt)-15° to 90° (auto flip)
- Pan Speedpan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
- Tilt Speedtilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
- Proportional Panyes
- Presets300
- Preset Freezingyes
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans
- Park Actionpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
- 3D Positioningyes
- PTZ Status Displayyes
- Scheduled Taskpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
- Power-off Memoryyes
- Video
- Main Stream
[Bullet channel]:
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
[PTZ channel]:
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream
[Bullet channel]:
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
[PTZ channel]:
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
[Bullet channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
[PTZ channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video CompressionH.265||H.264||MJPEG
- Video Bit Rate32 kbps to 16384 kbps
- H.264 Typebaseline profile||main profile||high profile
- H.265 Typemain profile
- Scalable Video Coding (SVC)yes
- Region of Interest (ROI)main stream, sub-stream and third stream respectively support eight fixed areas
- Audio
- Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM
- Audio Bit Rate32 to 192 Kbps (MP2L2)
- Audio Sampling Rate8 kHz,16 kHz,32 kHz,48 kHz
- Environment Noise Filteringyes
- Network
- ProtocolsIPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour
- Simultaneous Live View20
- APIOpen-ended API, Open Network Video Interface (Profile S, Profile G), ISAPI, Hikvision SDK, Third-party management platform, ISUP
- User/Host32
- SecurityAuthenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
- Network StorageNAS (NFS, SMB/ CIFS)|| ANR||ANR
- ClientiVMS-4200||Hik-Connect
- Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+
- Image
- Image Parameters SwitchYes
- Image Settingssaturation||brightness||contrast||sharpness
- Day/Night Switchday, night, auto, scheduled-switch
- Wide Dynamic Range (WDR)120 dB WDR
- SNR＞52dB
- Defogyes
- Image StabilizationEIS (Built-in gyroscope to improve EIS performance)
- Image EnhancementBLC, HLC, 3D DNR
- Privacy Mask[Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
- Regional Focusyes
- Regional Exposureyes
- Interface
- Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
- On-board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
- Audio1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%,1 audio output, line level, impedance: 600 Ω
- Alarm2 input(s), 1 output(s)
- Resetyes
- Event
- Basic Event[PTZ channel] motion detection, video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
- Smart Event[PTZ channel & bullet channel] audio exception detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
- Linkage[Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
- Smart Tracking[PTZ channel] yes
- Smart LinkageManual tracking, auto tracking, tracking takeover, track in turn
- Deep Learning Function
- Face Capture[Bullet channel] no,[PTZ channel] yes
- General
- Power24 VAC, Hi-PoE
- DimensionØ 220 mm × 382.1 mm (Ø 8.66" × 15.04")
- WeightApprox. 6 kg (13.23 lb.)
- MaterialADC12
- Operating Condition-30℃ to 65℃ (-22°F to 149°F) ||humidity lower than 90%RH
- General Functionmirror, password protection, watermark, IP address filter
- DemistDemist by heating the glass
- Power Consumption and CurrentMax. 42 W, including max. 2.6 W for heater and max. 11 W for supplement light
- Approval
- ProtectionIP66 Standard, IK10 (excluding glass window), 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
