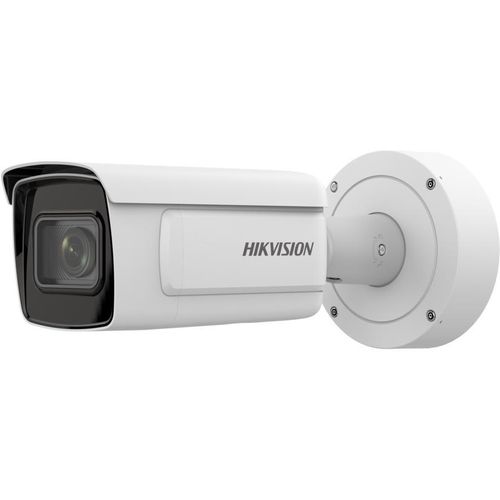

Hikvision bullet iDS-2CD7A46G0-IZHS(C) F2.8-12
Kättetoimetamise tähtajad
Kaup tellitakse tarnija laost. Kui tarnijal ei ole võimalik tarnida kaupa näidatud kuupäevani, informeerime teid epostitsi.
 Saadaval | Tarnija ladu |
Kulleriga koju
Kulleriga koju
Üle 25,00 € (Tellimused kuni 1000 kgs) | Tasuta |
25,00 €-le (Tellimused kuni 1000 kgs) | 4,50 € |
Kohaletoimetamine DPD pakiautomaatidele
Kohaletoimetamine DPD pakiautomaatidele
3,50 €
Tarnija toote kirjeldus
- High quality imaging with 4 MP resolution
- Excellent low-light performance via DarkFighter technology
- Clear imaging against strong back light due to 140 dB WDR technology
- Efficient H.265+ compression technology to save bandwidth and storage
- 5 streams to meet a wide variety of applications
- Water and dust resistant (IP67) and vandal proof (IK10)
- Camera
- Image Sensor1/1.8" Progressive Scan CMOS
- Max. Resolution2560 × 1440
- Min. IlluminationColor: 0.0005 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time1 s to 1/100,000 s
- Day & Night
IR cut filter
Blue glass module to reduce ghost phenomenon
- Lens
- Focal Length & FOV
2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°
8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°
- FocusAuto, semi-auto, manual
- Iris TypeP-iris
- Aperture
2.8 to 12 mm: F1.2 to F2.5
8 to 32 mm: F1.7 to F1.73
- DORI
- DORI
Wide:
2.8 to 12 mm: D: 60 m, O: 23.8 m, R: 12 m, I: 6 m
8 to 32 mm: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m
Tele:
2.8 to 12 mm: D: 149 m, O: 59.1 m, R: 29.8 m, I: 14.9 m
8 to 32 mm: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light Range
2.8 to 12 mm: 50 m
8 to 32 mm: 100 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz: 50 fps (2560 × 1440, 1920 × 1080, 1280× 720)
60 Hz: 60 fps (2560 × 1440, 1920 × 1080, 1280× 720)
- Sub-Stream
50 Hz: 25 fps (704 × 480, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
- Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Fourth Stream
50 Hz: 25 fps (704 × 480, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
- Fifth Stream
50 Hz: 25 fps (704 × 480, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
- Video Compression H.265+/H.265/H.264+/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeBaseline Profile/Main Profile/High Profile
- Bit Rate ControlCBR/VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)4 fixed regions for main stream, sub-stream, third stream, fourth stream and fifth stream
- Target CroppingYes
- Audio
- Audio TypeMono sound
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
- Environment Noise FilteringYes
- Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC) /8 to 320 Kbps (MP3)
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- Simultaneous Live ViewUp to 20 channels
- APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
- Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ClientiVMS-4200, Hik-Connect
- Web Browser
Plug-in required live view: IE9+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11
Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Not recommended: Safari 11+, Edge
- Image
- Image Parameters SwitchYes
- Image SettingsSaturation, brightness, contrast, sharpness, white balance, and AGC adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule, Alarm Trigger
- Wide Dynamic Range (WDR)140 dB
- Image EnhancementBLC, HLC, Defog, 3D DNR
- SNR≥ 52 dB
- Privacy Mask8 programmable polygon privacy masks, mask color or mosaic configurable
- Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
- Image StabilizationEIS
- Interface
- Video Output1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
- Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- AudioWith -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
- Alarm 2 input, 2 outputs (max. 24 VDC, 1 A)
- RS-485With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reset KeyYes
- Power OutputWith -Y: 12 VDC, max. 100 mA
- Event
- Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection
- Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection, scene change detection, defocus detection
- LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
- Deep Learning Function
- Multi-target-type Detection
Supports simultaneous detection and capture of human body, face and vehicle
Gets 7 face features, 13 human body features and 2 vehicle features
- Face Capture
1. Detects up to 60 faces simultaneously
2. Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°
3. Uploads face with background and closed-up face pictures
- Face Comparison
Up to 10 face libraries. Up to 30,000 faces for each library. 150,000 faces in total.
Supports face library encryption
- Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- General
- Power
12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block
PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V), 0.396 A to 0. 295A, max. 16.8 W
- Dimension
Without -Y: Ø144 × 347 mm (Ø5.7″ × 13.7″)
With -Y: Ø140 × 351 mm (Ø5.5″ × 13.8″)
- Package Dimension405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)
- Approx. 1950 g (4.2 lb.)
- With Package WeightApprox. 3070 g (6.7 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionHeartbeat, mirror, password protection, watermark, privacy mask, IP address filter, one-key reset, five streams
- Approval
- EMC
FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7);
KC (KN 32: 2015, KN 35: 2015)
- Safety
UL (UL 62368-1);
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014/A11:2017);
BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005);
LOA (IEC/EN 60950-1)
- Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
- ProtectionIK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
- Anti-Corrosion ProtectionWith -Y: NEMA 4X(NEMA 250-2018)
- Automotive and RailwayEN50121-4
- OtherPVC FREE
