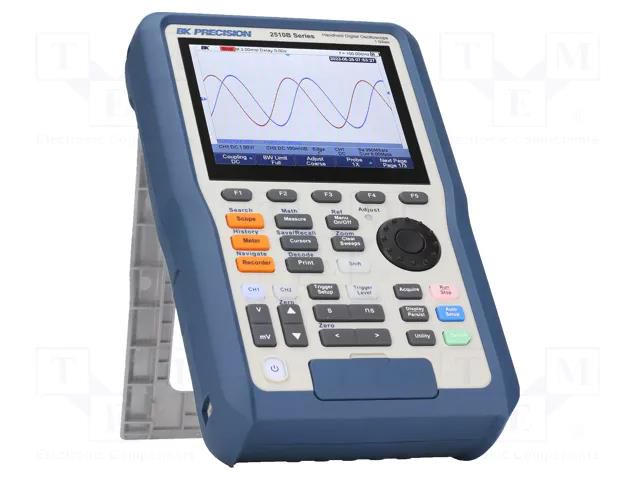

Handheld oscilloscope; 200MHz; 8bit; LCD TFT; Ch: 2; 1Gsps; 12Mpts B&K PRECISION
Toote kood: BK2516B
Rohkem sarnaseid tooteid
Kättetoimetamise tähtajad
Kaup tellitakse tarnija laost. Kui tarnijal ei ole võimalik tarnida kaupa näidatud kuupäevani, informeerime teid epostitsi.
 Ei ole saadaval | Tarnija ladu |
Kulleriga koju
Kulleriga koju
Üle 25,00 € (Tellimused kuni 1000 kgs) | Tasuta |
25,00 €-le (Tellimused kuni 1000 kgs) | 4,50 € |
Kohaletoimetamine DPD pakiautomaatidele
Kohaletoimetamine DPD pakiautomaatidele
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.
3,50 €
Kauba kirjeldus
Handheld oscilloscope; 200MHz; 8bit; LCD TFT; Ch: 2; 1Gsps; 12Mpts B&K PRECISION
Kasulik informatsioon
Tehnilised andmed
Laokood
U-4025094
NomNr
BK2516B
Tarnija toote kirjeldus
Handheld oscilloscope; 200MHz; 8bit; LCD TFT; Ch: 2; 1Gsps; 12Mpts
Kasulik informatsioon
Tarnija toote parameetrid
Product code
BK2516B
Supplier's product code
BK2516B
Product ID
U-4025094
AC current measuring accuracy
±(1% + 15 digit)
AC current measuring range
10A
AC voltage measuring accuracy
±(1% + 15 digit)
AC voltage measuring range
600V
Additional functions
multimeter
Band
200MHz
Battery/ rechargeable battery
rechargeable battery Li-Ion 7,2V x1
Capacitance measuring range
40nF
Conform to the norm
CAT II 1000V
Continuity test
<50Ω
DC current measuring range
10A
DC voltage measuring range
600V
Dimensions
168x276x68mm
Diode test
0...2V
Display resolution
640x480
Input coupling
AC, DC, GND
Input impedance
1MΩ/14pF
Input sensitivity
5mV/div...100V/div
Interface
USB Host
IP rating
IP51
Kind of display used
LCD TFT
Manufacturer
B&K PRECISION
Max. input voltage
1kV
Measuring instrument features
insulated inputs
Memory record length
12Mpts
Number of channels
2
Power supply
rechargeable battery Li-Ion 7,2V x1
Resistance measuring accuracy
±(1%+15 digit)
Resistance measuring range
600Ω
Rise time
≤2ns
Sampling
1Gsps
Screen size
5.6"
Standard equipment
USB cable
Supply voltage
100...240V
Support
SCPI
Type of oscilloscope
handheld oscilloscope
Trigger
video signal
Trigger modes
automatic
Trigger source
CH1
Vertical resolution
8bit
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
