Product description
Wireless HDMI™ Transmitter | Wi-Fi | 5.15 - 5.85 MHz | 100.0 m (line of sight) | Maximum resolution: Full HD 1080p | 6.75 Gbps | IR Return function | ABS | Anthracite
Specifications
SKU
U-2945369
Barcodes
5412810410453
Product code
VTRA3470AT
Supplier product description

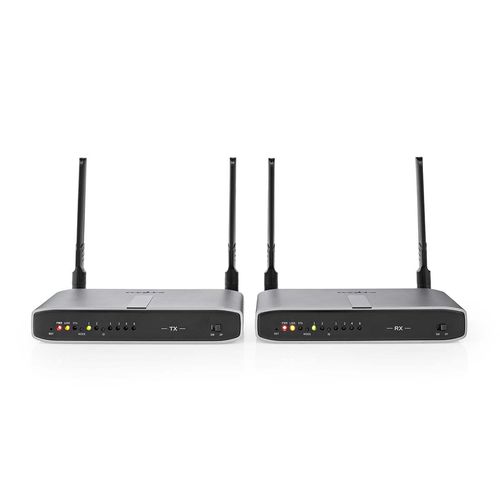

This Nedis Wireless HDMI™ extender offers wireless HDMI™ signal transmission of connected audio/video equipment to a TV or beamer up to a distance of 150 metres. The HDMI™ signal even passes through walls and ceilings. Ideal when a cabled connection is not possible or when you don’t want to pull a cable connection. With the wireless extender, you can have a TV signal anywhere in the house without having a television connection at this location.
This makes it very easy to watch television in the bedroom or place your television anywhere you want without considering the availability of a TV connection. The extender supports IR and USB pass-through control functions, allowing you to control your set-up box, Blu-Ray player or another device connected to the transmitter. This means that when your TV decoder is in the living room and your second TV is in the bedroom, you can always switch to another television channel from your bedroom.
The Nedis Wireless HDMI™ extender features an additional loop through output to extend your signal to multiple screens. This way, you simultaneously watch a film or series at two different locations in your home.
When a PC is connected to the transmitter, you can also operate the PC remotely. To operate this PC, connect a keyboard and a mouse to the receiver. When using your second television, you may work on your PC or laptop that is located elsewhere in the home.
Supplier parameters
Product code
VTRA3470AT
Product ID
U-2945369
Aspect ratio
16:9
Audio transmission support
Yes
Channel bandwidth
20 MHz;40 MHz
Clock frequency
225 MHz
Colour
Anthracite
Connection input
1x 3.5 mm Audio Input;1x HDMIā„¢ Input;1x HDMIā„¢ Output;1x USB-A;DC Power
Connection output
1x 3.5 mm Audio Out;1x HDMIā„¢ Output;2x USB 2.0 A Female;DC Power
Device power input connection(s)
DC Power Plug
Device type
HDMIā„¢ Transmitter
Input current
1.0 A
Input voltage
12 V DC
IR Return function
Yes
Material
ABS
Maximum bandwith
6.75 Gbps
Maximum distance
100.0 m (line of sight)
Maximum resolution
Full HD 1080p
Maximum transmission delay
0.2 s
Maximum transmit antenna gain
5 dBi
Maximum transmit power
10 dBm
Number of products in package
1 pcs
Power adapter cable length
1.50 m
Power cable side A
Euro / Type C (CEE 7/16)
Power cable side B
DC
Power plug
Euro (CEE 7/16)
Power source type
Mains Powered
Resolution standard
Full HD
SmartLife
No
Supported resolutions
1080p@60Hz
Supported technology
HDCP
Transmission frequency
5000 MHz
Transmission type
Wi-Fi
Transmit frequency range
5.15 - 5.85 MHz
Video compression
H.264
Supplier's product code
VTRA3470AT
