Window Cable Entry 3C2V 22CM, EMOS
Product Code: S5378
Delivery terms
2024-12-05 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
Product description

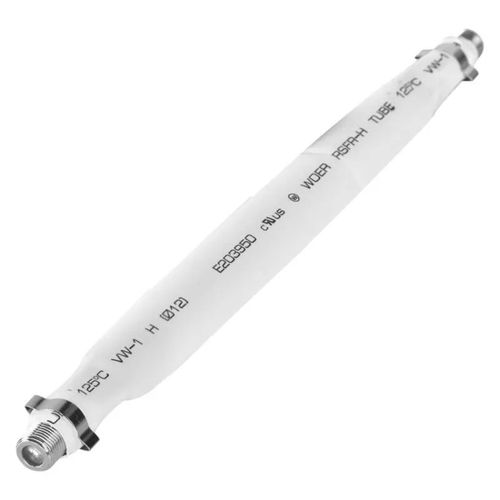

Window bushing designed for leading coaxial cables through the window without the need for drilling. A practical method of laying cables, quick and simple. The bushing is fitted on both ends with handy F connectors.
Supplier parameters
Product code
S5378
Brand
EMOS
Supplier's product code
S5378
Product ID
U-2337334
APE = air dielectric
no
capacity (pF/m)
53
coaxial cable type
3C2V
color cable sheath > Cable sheath color
white
colour of insulation of power conductors
not stated
construction of power conductors
not stated
cross-section of power conductors
not stated
dangerous substances
do not subject to CPR
diameter of cable sheath
3 mm
diameter of the inner conductor
0.5 mm
dielectric type, diameter
PE 1.6 mm
factor of shortening
0.81
FPE = Foam dielectric
not stated
impedance
75 Ohm
insulation of power conductors
not stated
insulation resistance between the cores at 20 °C (MOhm/km)
not stated
intended use
replacement of drilling of the walls
material of the cable jacket
PVC
material of the inner conductor
copper (Cu)
material of the shielding
copper clad aluminium (CCA)
max. attenuation at 20 °C (dB/100 m) 1 000 MHz
not stated
max. attenuation at 20 °C (dB/100 m) 10 MHz
not stated
max. attenuation at 20 °C (dB/100 m) 100 MHz
not stated
max. attenuation at 20 °C (dB/100 m) 2 000 MHz
not stated
max. attenuation at 20 °C (dB/100 m) 450 MHz
not stated
max. attenuation at 20 °C (dB/100 m) 650 MHz
not stated
max. attenuation at 20 °C (dB/100 m) 860 MHz
not stated
max. DC resistance at 20 °C (Ohm/km) - inner core
not stated
max. DC resistance at 20 °C (Ohm/km) - outer core
not stated
min. bend radius single/multiple
not stated
min. return loss at 20 °C (dB) 10 to 300 MHz
not stated
min. return loss at 20 °C (dB) 600 to 900 MHz
not stated
min. return loss at 20°C (dB) 300 to 600 MHz
not stated
min. shielding attenuation (dB) 10 ~ 800 MHz
not stated
mounting temperature
+5 °C to +60 °C
number of braiding wires
32× 0.12 mm
number of shieldings
1
packaging
1 pc, PE packet
PE = polyethylene dielectric
not stated
PES = layer film
not stated
reaction to the fire
do not subject to CPR
recommended types of connectors - F pressing
not stated
recommended types of connectors - F screwing
not stated
shielding diameter
32× 0.12 mm²
shielding I. foil
no
shielding II. foil
none
shielding protection
28 %
storage temperature
-20 °C to +75 °C
suitable for outdoor use
yes
type of packaging - labeled yardage > Type of packaging - labeled meters
not stated
type of packaging - length
22 cm
type of packaging - type of coil
not stated
UV resistant
yes
warranty period
2 years
weight (kg/km)
not stated
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
