Product description

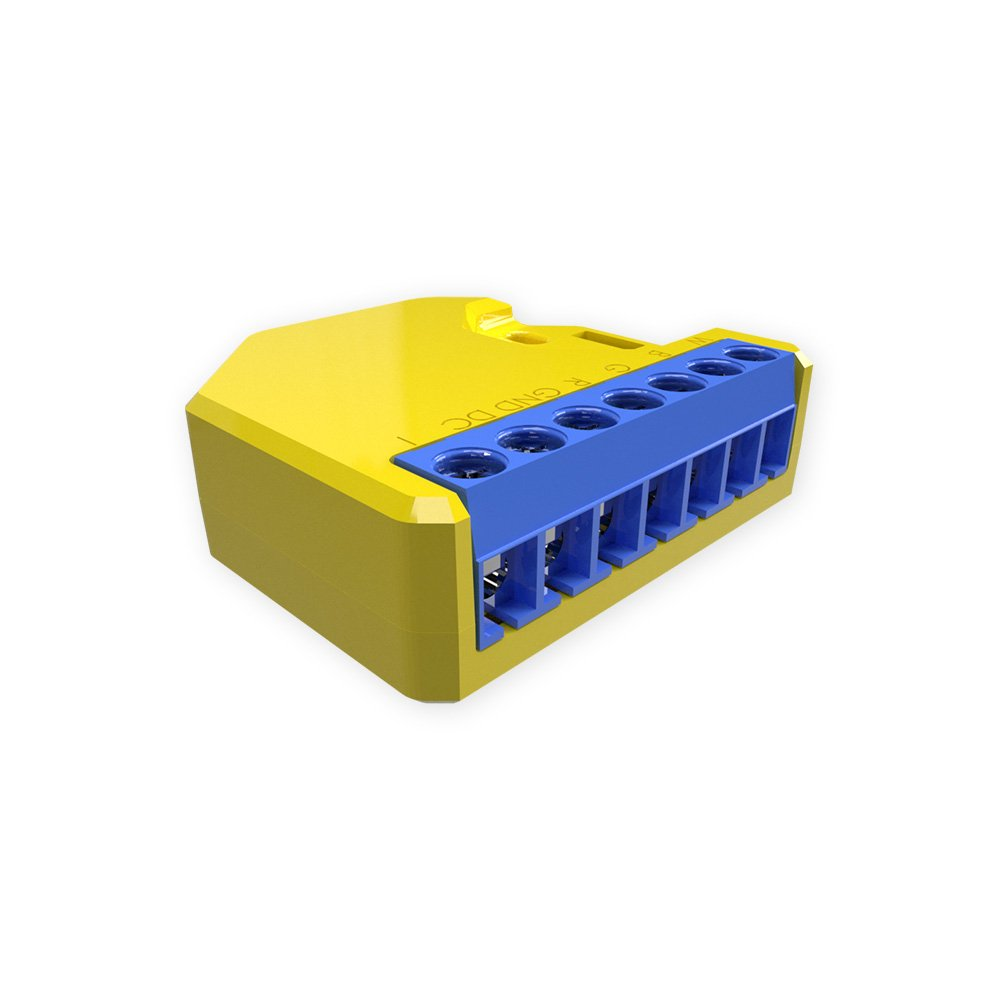

Shelly RGBW2
Opens image in full screenOpen
Downloads
Manuals
Compliance
Shelly RGBW2 multilingual EU declaration of conformity.pdf
Shelly RGBW2 UK PSTI ACT Statement of compliance.pdf
Shelly RGBW2 x2 UK PSTI ACT Statement of compliance.pdf
What is Shelly RGBW2?
WiFi-operated RGBW controller
Make your LED strips smart in one easy step. Shelly RGBW2 can connect like any LED controller and allows you to control all your lighting directly from a mobile device or tablet.
Features
-
No HUB is required.
-
Wide range of voltage support.
-
Huge palette of different colors, dimming options, and effects.
-
Designed to fit in most standard electrical boxes and switches.
-
It can be integrated to work with all other Shelly devices.
-
Compatible with Android, iOS, Amazon Alexa, Google Assistant, and home automation servers using MQTT, CoAP, and REST API.
-
Easily make your Arduino project live and usable in your automation project.
Enlarges the table by opening it in a full screen dialogOpen
|
POWER |
|
|
Power supply AC |
No |
|
Power supply DC |
12V/ 24V |
|
DC Power Output 12V per channel |
45W |
|
DC Power Output 24V per channel |
90W |
|
DC Power Output 12V combined power |
144W |
|
DC Power Output 24V combined power |
288W |
|
SPECIAL FUNCTIONS |
|
|
Device temperature protection |
No |
|
Overload protection |
No |
|
Power measurement |
Yes |
|
Dimming |
Yes |
|
Working without a neutral line |
No |
|
FEATURES |
|
|
Colour changing |
Yes |
|
Predefined effects |
Yes |
|
Channels |
4 Channel |
|
Maximum load |
12A |
|
Operational temperature |
0ºC to +40ºC |
|
Device power consumption |
< 1 W |
|
Intelligent On/Off |
Yes |
|
Local and remote control |
Yes |
|
Sunrise/Sunset |
Yes |
|
Weekly Schedule |
Yes |
|
UL Listed option |
No |
|
CONNECTIVITY |
|
|
Wireless/WiFi Protocol |
802.11 b/g/n |
|
Radiofrequency |
2400 – 2500 MHz |
|
Range |
up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
|
DIMENSIONS |
|
|
Size |
43mm x 38mm x 14mm |

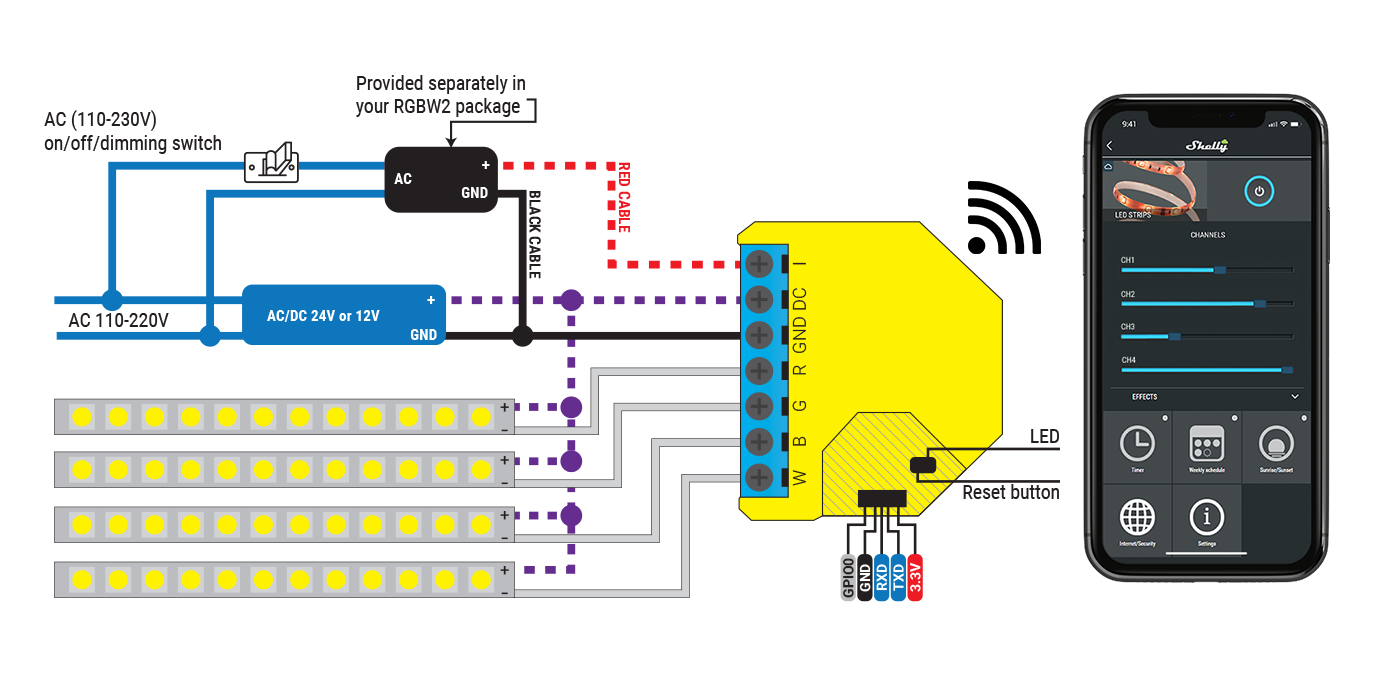

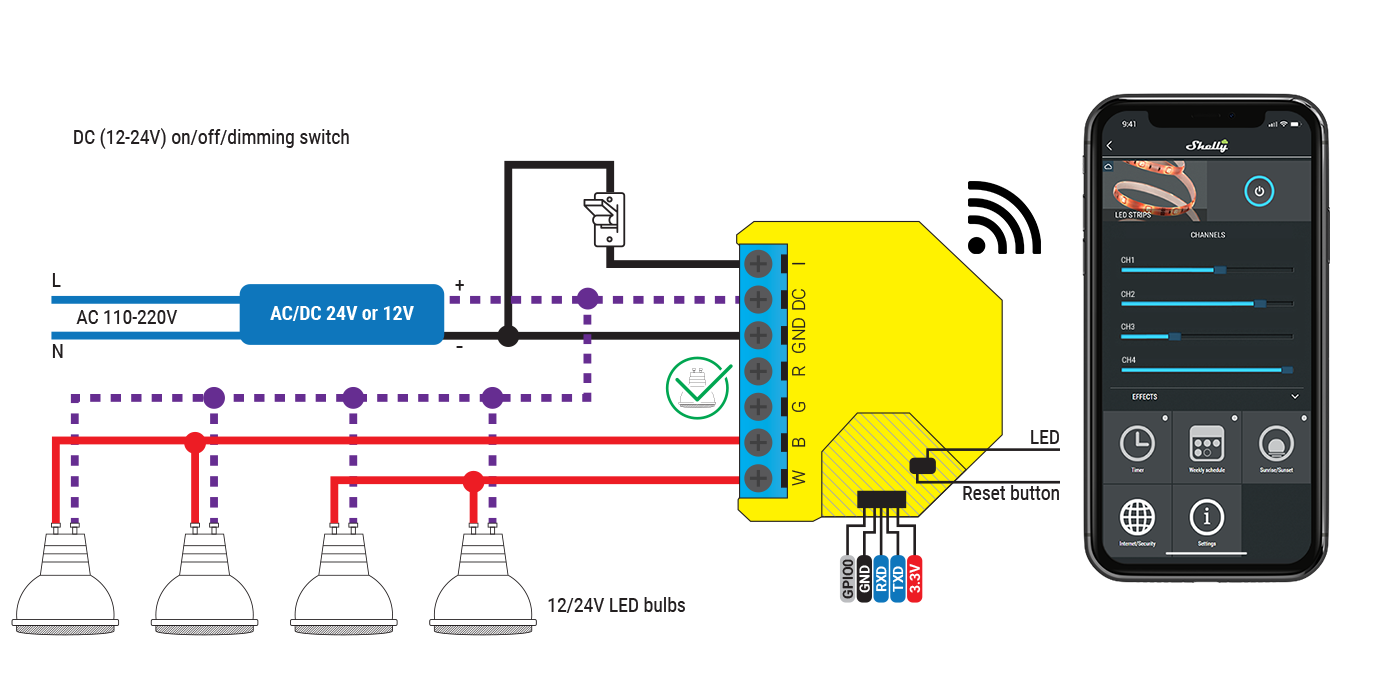

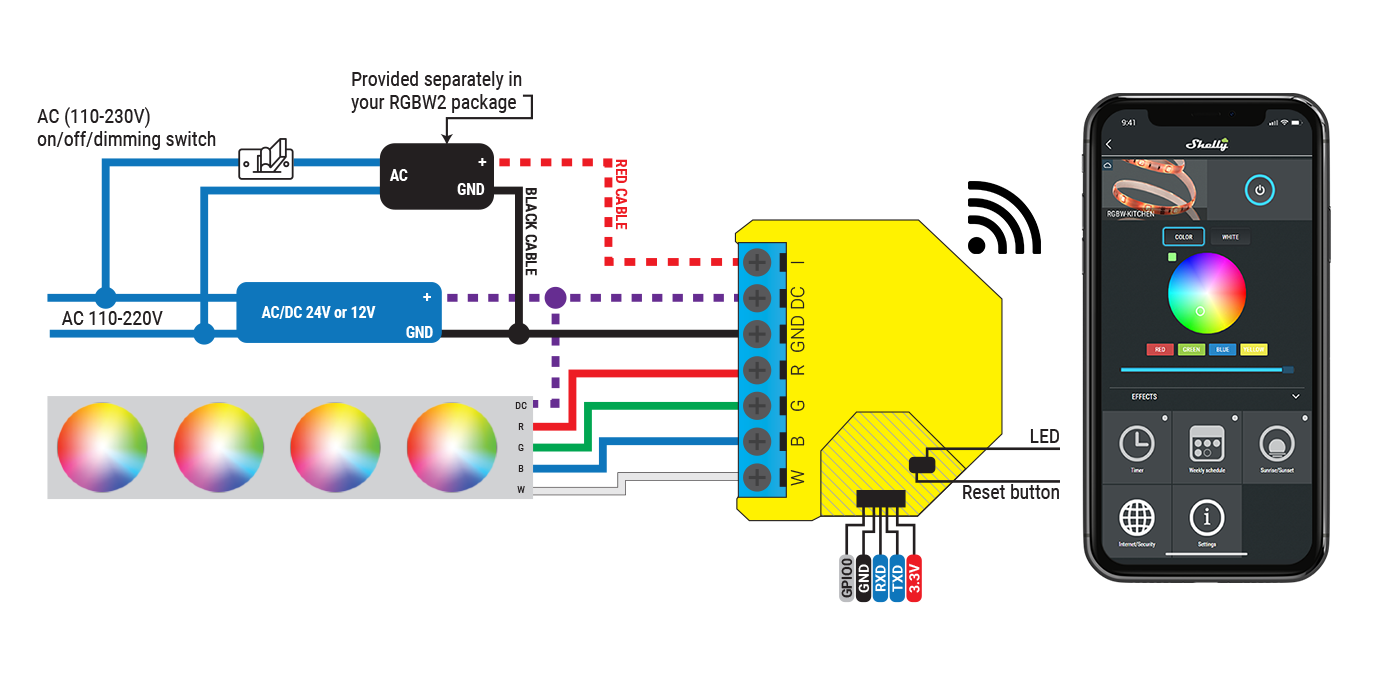

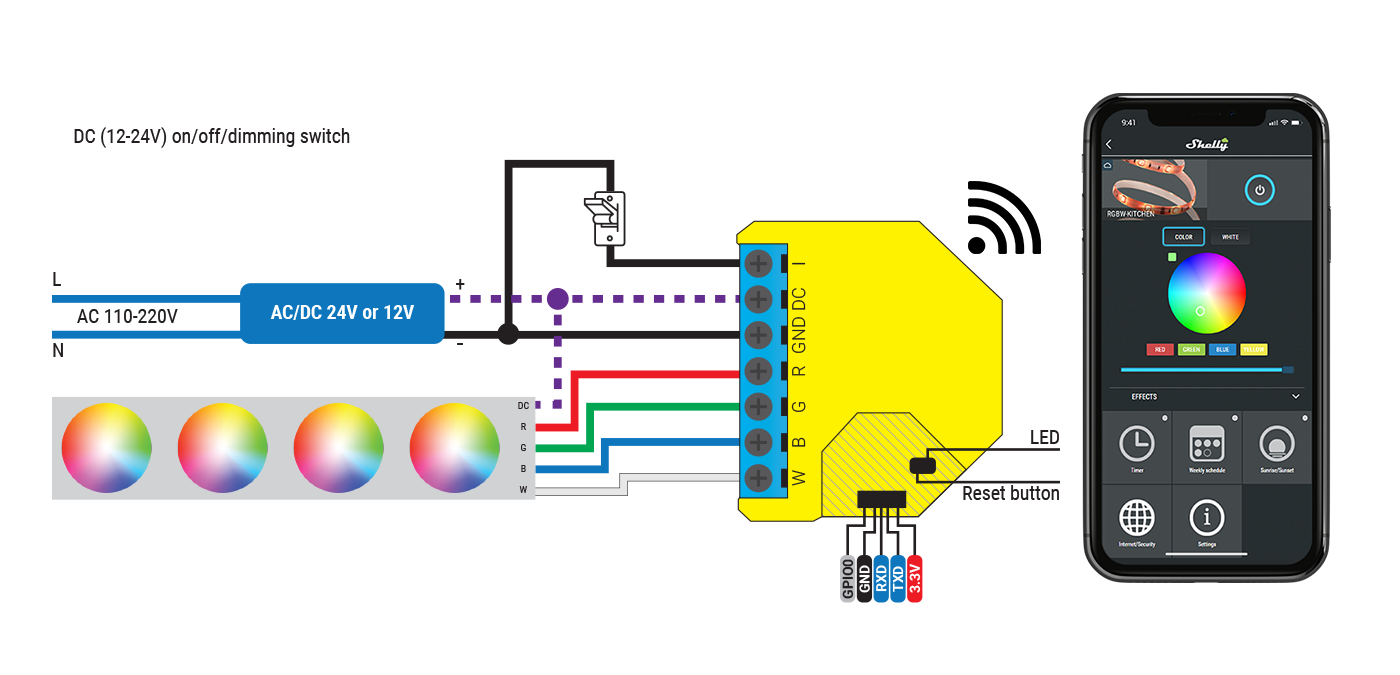

Wiring diagrams
Enlarges the table by opening it in a full screen dialogOpen
|
Opens image in full screenOpen
|
Opens image in full screenOpen
|
Enlarges the table by opening it in a full screen dialogOpen
|
Opens image in full screenOpen
|
Opens image in full screenOpen
|
Enlarges the table by opening it in a full screen dialogOpen
|
Opens image in full screenOpen
|
Opens image in full screenOpen
|
Enlarges the table by opening it in a full screen dialogOpen
|
Opens image in full screenOpen
|
Opens image in full screenOpen
|
Use cases
Universal lighting control
Are you going to bed and need to switch off all the lights? Install Shelly RGBW2, and you will be able to control all lights with just one tap via your smartphone, or with your voice. It can manage RGB+W, 4x single-color LED strips, or the spotlights in your living room.
