Product description

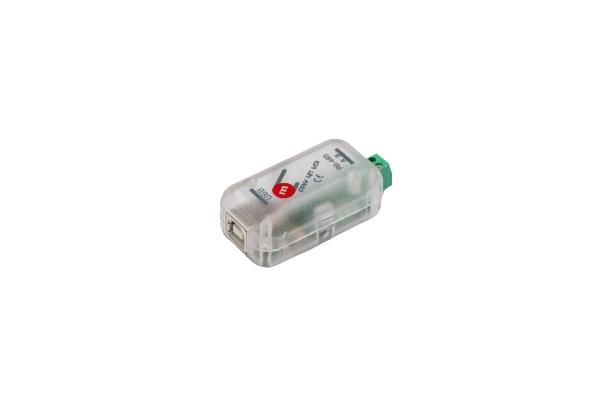

USB/RS485 interface for Forteza
Specifications
SKU
U-2875525
Product code
BMFRS485
Supplier product description
- For connecting TRIBO-S or FMC sensors to a computer (Windows)
- Powered by a USB port
- Power consumption (max.): 35 mA ( no load on RS-485 side)
- No galvanic isolation USB / RS485
- USB
- StandardCorresponds to USB 2.0
- RS-485
- Speed300 bps .. 230.4 kbps300 bps .. 230.4 kbps
- Maximum number of transmitters/receivers32 (limited line length and no terminating resistors)
- Differential Output Voltage (TxD)3.3 V for RL=∞; min.: 1.5 V for RL=54 Ω
- Receiver Input Impedance (RxD)12 kΩ
- Minimum Input Voltage (RxD)0.2 V
- Acceptable voltage in terminals A, B-7 .. +12 V (maks.)
- Short circuit protectionYes
- Other
- PurposeFor service purposes only
- Power supplyFrom the USB port
- Rated current35 mA (no load on the RS-485 side)
- USB / RS-485 galvanic isolationNe
- Operating temperature0 .. +50 °C
- Storage temperature-20 .. +60 °C
- Dimensions (without terminals) L x W x H56 mm x 31 mm x 25 mm
- Weight25 g
- Other
- VCP (for virtual COM PORT drivers)Windows 10 (32, 64 bit), Windows 8/8.1 (32, 64 bit), Mac OS-X, Linux 3.2 and newer
- D2XX (for USB Direct drivers)Windows 10 (32, 64 bit), Windows 8/8.1 (32, 64 bit), Mac OS-X, Linux 2.6 and newer
Supplier parameters
Product code
BMFRS485
Category
Microwave
Supplier's product code
BMFRS485
Product ID
U-2875525
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: lemona@lemona.ee.
