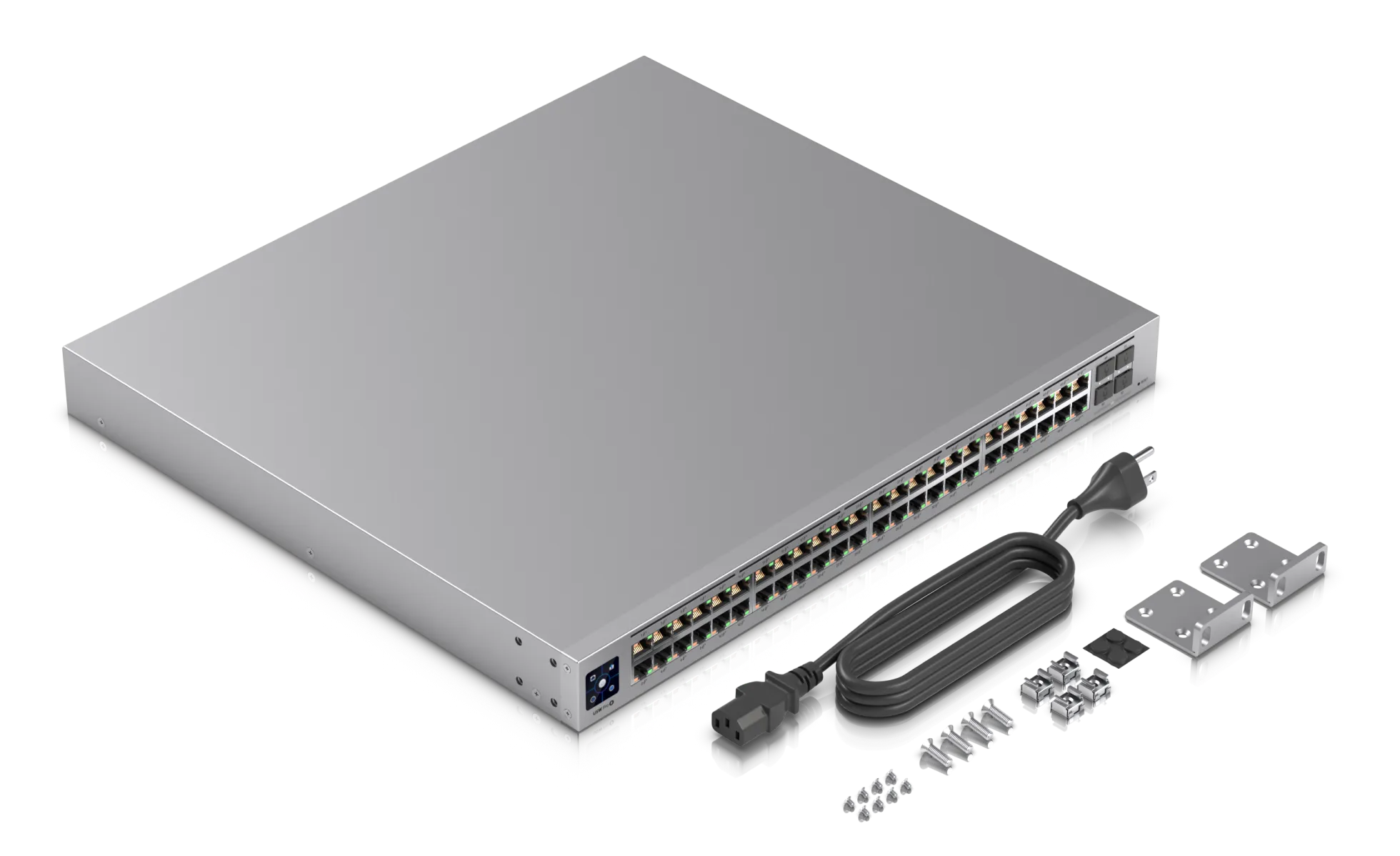

Ubiquiti USW-PRO-48-POE
USW-Pro-48-POE is a configurable Gigabit Layer2 and Layer3 switch with automatic 802.3at PoE+ and 802.3bt PoE++ detection. Forty PoE+ Ethernet ports and eight PoE+++ RJ45 Ethernet ports have a total 600W PoE budget and four SFP+ ports offer 10Gbps uplink options. Nearly completely silent cooling and 1.3" LCM touch screen.
UniFi OS Console
The switch is managed and configured by the UniFi network OS Console. The UniFi network OS Consoleand the mobile application allow administrators to configure and monitor virtually all switching functions from anywhere in the graphical user interface.

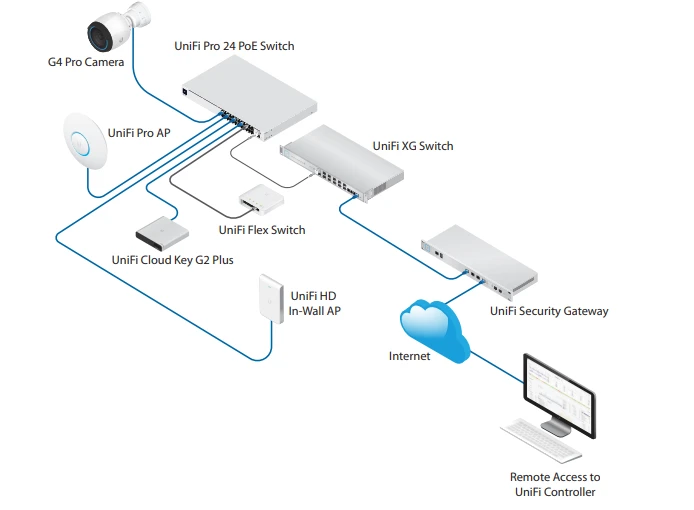

Example of implementation
Functions via the UniFi OS Console
Functions via the UniFi OS Console
- Operating mode (switching, mirroring, aggregation) per port
- Network / VLAN configuration
- Jumbo Frame and Flow Control services
- Network settings
- Storm control on port
- Configuration of the spanning tree
- Control 802.1X and RADIUS VLAN
- Option to debug the command line interface
| LAN standard | Gigabit Ethernet 10/100/1000 Mb/s |
| Number of LAN ports | 48x [10/100/1000M (RJ45)] |
| Number of LAN ports | 4x [10G (SFP+)] |
| Number of PoE ports | 40x [802.3af/at (1G)] |
| Number of PoE ports | 8x [802.3bt (1G)] |
| 10G support | Yes |
| AC input frequency | 50/60 |
| AC input voltage | 100 - 240 |
| Authentication type | IEEE 802.1x,RADIUS |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Certification | CE, FCC, IC |
| DC input voltage | 44 - 57 |
| Depth | 399.6 |
| DHCP features | DHCP server |
| Flow control support | Yes |
| Form factor | 1U |
| Forwarding rate | 130.944 |
| Full duplex | Yes |
| Harmonized System (HS) code | 85176990 |
| Height | 43.7 |
| Input current | 11.54 |
| Installed SFP+ modules quantity | 4 |
| Jumbo frames support | Yes |
| LED indicators | Activity, Link, PoE, Speed, System |
| Management | CLI - Command Line Interface |
| Management | By web browser |
| Networking standards | IEEE 802.3af,IEEE 802.3at |
| Number of power supply units | 1 |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | -5 - 40 |
| Port mirroring | Yes |
| Power (W) | 600 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 64 |
| Power over Ethernet plus (PoE+) ports quantity | 40 |
| Power supply included | Yes |
| Product colour | Silver |
| Rack mounting | Yes |
| Spanning tree protocol | Yes |
| Static route | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Switching capacity | 176 |
| Switching layer | 2 |
| Throughput | 88000 |
| Total Power over Ethernet (PoE) budget | 600 |
| Type of case | Rack (1U) |
| VLAN support | Yes |
| Weight | 6.25 |
| Width | 442.4 |
