Product Specifications of UTi120M
Thermal camera 120x90, -20℃~400℃, 50º*38º, 25Hz; Android,UNI-T
Product Code: UTi120M
New
Home delivery 1-4 b.d.
Delivery to DPD Pickup locations 1-4 b.d.
Delivery terms
Order processing
Order processing
Orders are processed and shipped on weekdays from 8:00 a.m. to 5:00 p.m.
We will notify you via SMS and email when your order is being delivered.
Quantity in shop
 Not available | Lemona Estonia warehouse |
 2 pcs | Lemona Vilnius warehouse 1 |
| 2 pcs | Lemona Vilnius warehouse 2 |
| 2 pcs | Lemona Kaunas warehouse |
| 1 pcs | Lemona Klaipėda warehouse |
| 2 pcs | Lemona Šiauliai warehouse |
| Not available | Lemona central warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
To €25.00 (Orders up to 1000 kgs) | For free |
Over €25.00 (Orders up to 1000 kgs) | For free |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
For free
Product description

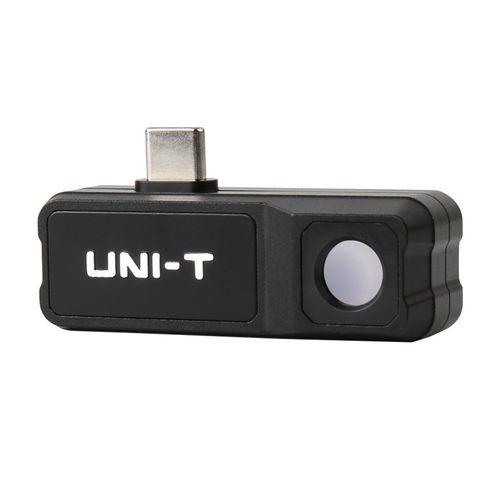

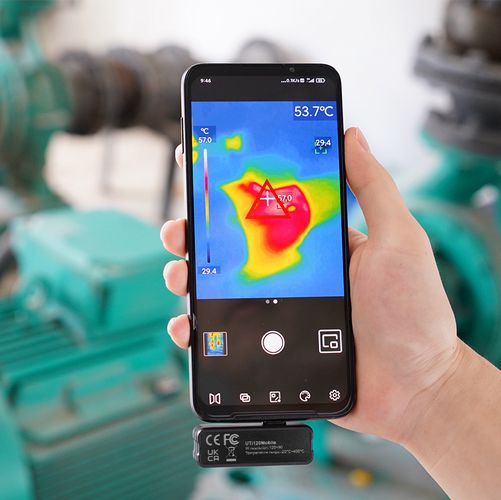

UTi120M is a professional smartphone thermal camera module for Android, which is compact, portable, and easy to operate through connecting with mobile phones. UTi120M rovides clear image with a fast response, and can also detect temperature up to 400℃. Users can troubleshoot HVAC problems or investigate heat source issues around the house faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders etc.
| Technical Data | |
| IR resolution (Pixels) | 120×90 |
| Field of view(FOV) | 50°×38° |
| Thermal sensitivity(NETD) | ≤60mK @25℃ |
| Spatial resolution(IFOV) | 7.3mrad |
| Frame rate | ≤25Hz |
| Spectral range | 8~14µm |
| Focus | Focus free |
| Lens focal length | 2.28mm |
| Temperature measurement range | -20℃ ~ 400℃ |
| Accuracy | ±2℃ or ±2% whichever is greater |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| Functions | |

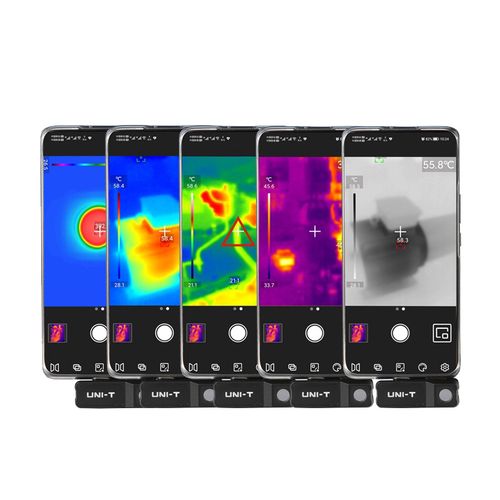

| Color palettes | 7 (White hot, Lava, Ironbow,Black hot, Red hot, Rainbow, Rainbow HC) |
| Image modes | Thermal,Fusion,PIP |
| On screen analyzer | 6 Points/6 Lines/6 Rectangles/6 Circles |
| Hi/Lo temperature alarm | √ |
| Video recording | √ |
| General Characteristics | |
| USB | Type-C |
| Drop proof | 2m |
| Image/Video storage format | JPEG, MP4 |
| Certificates | CE,UKCA,FCC,RoHS |
| Product net weight | 25g |
| Product size | 53mm×18.2mm×18.5mm |
| Packing Details | |
| Standard accessories | Micro USB adapter, USB cable, English manual, Documents download operation guide card |
| Standard individual packing | Gift box |
| Standard Qty per carton | 20pcs |
| Standard carton size | 290mm×265mm×325mm |
| Standard carton G.W. | 4.8kg |
Useful information
Specifications
SKU
421712
Weight
0 kg.
Barcodes
6935750512616; 6935750512654
Brand
Product code
UTi120M
Height, mm
120
Width, mm
100
Depth, mm
50
Description generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligence
Experimental product description generated by artificial intelligence
UNI-T Thermal Imaging Camera: Precise Temperature Measurement
This UNI-T Thermal Camera, a high-quality infrared camera, offers precise temperature readings for various applications. Its robust design and advanced features make it a reliable tool for professionals and enthusiasts alike.
Key Features and Specifications
- Brand: UNI-T
- Resolution: 120x90 pixels
- Temperature Range: -20℃ to 400℃
- Field of View: 50º x 38º
- Refresh Rate: 25Hz
- Operating System: Android
Applications
This thermal imager is versatile and suitable for a wide range of uses, including:
- Building inspections (detecting heat loss)
- Electrical maintenance (identifying overheating components)
- Industrial applications (monitoring equipment temperature)
- Research and development
Why Choose This Thermal Camera?
The UNI-T Thermal Camera provides superior performance and value. Its high resolution, wide temperature range, and fast refresh rate ensure accurate and detailed thermal images. The Android operating system offers user-friendly operation and data management. This makes it an ideal choice for professionals and hobbyists needing a reliable and accurate thermal imaging solution.
Technical Details
| Parameter | Value |
|---|---|
| Model | Thermal camera 120x90, -20℃~400℃, 50º*38º, 25Hz |
| Infrared Resolution | 120x90 |
| Temperature Range | -20℃~400℃ |
| Field of View | 50º*38º |
| Refresh Rate | 25Hz |
Invest in the UNI-T Thermal Camera for accurate and reliable temperature measurement.
