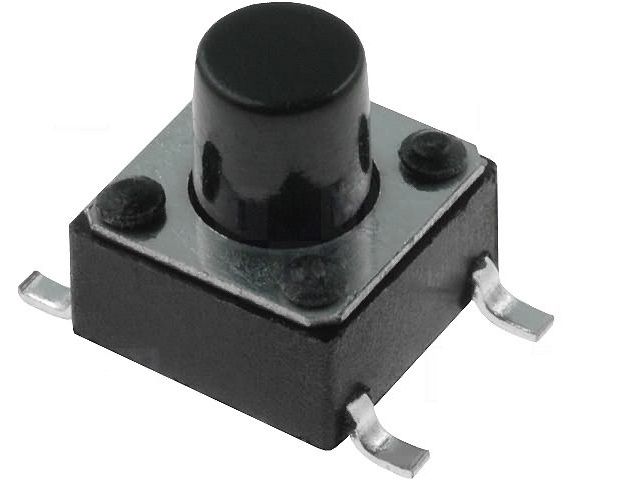

Tact swich; OFF-(ON) nonfixed; 4pins; 0.05A/12 VDC; SPST-NO; 6x6mm, SMT; H=7.0mm
Product Code: T-SM4/6x6/7.0
More similar products
Delivery terms
Pickup in department
Pickup in department For free
Orders are processed and shipped on weekdays from 8:00 a.m. to 5:00 p.m.
When your order is ready for collection, we will inform you by SMS and e-mail.
Quantity in shop
 Not available | Central Warehouse |
| Not available | Tallinn Office |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
Weight
0.000271 kg.
1.6N, round button; operating temperature: -25...70°C; pich 4.5x9mm; max resistance 50mΩ
Specifications
SKU
180238
Weight
0.000271 kg.
Fixation, 1-Su / 0-Be
Without fixation
Connection type
Off- (on)
Connecting contacts
SPST-NO
Number of contacts
4
Contact type
SMD
Mounting hole
Rectangular
Lighting
There is no
Current, A
0.05
Type
Microjungizer
Control voltage, V
12
Product code
T-SM4/6x6/7.0
Rated voltage DC, V
12
Other products of the same brand
Other products in this category
Supplier product description
Microswitch TACT; SPST-NO; Pos: 2; 0.05A/12VDC; SMT; none; 1.6N
Supplier parameters
Body dimensions
6x6mm
Button height
7mm
Button shape
round
Contacts configuration
SPST-NO
DC contacts rating @R
50mA / 12V DC
Illumination
none
Leads
for soldering
Manufacturer
NINIGI
Mechanical durability
100000 cycles
Mounting
SMT
Number of positions
2
Operating Force
1.6N
Operating temperature
-30...85°C
Stable positions number
1
Switching method
OFF-(ON)
Terminal pitch
4.5x9mm
Type of switch
microswitch TACT
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
Description generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligence
Experimental product description generated by artificial intelligence
Tact Switch: Reliable and Compact Push Button Switch
This Tact switch, also known as a tactile switch or push button switch, is a miniature surface mount device (SMT) ideal for various electronic applications. Its small size and reliable performance make it a popular choice for space-constrained designs.
Key Features and Specifications
- Switch Type: Tact switch, push button switch, tactile switch
- Configuration: OFF-(ON) non-fixed, momentary
- Contacts: SPST-NO (Single-Pole, Single-Throw, Normally Open)
- Pins: 4 pins
- Current/Voltage Rating: 0.05A / 12VDC
- Size: 6x6mm
- Height: 7.0mm
- Mounting Type: Surface Mount Technology (SMT)
- Operating Force: 1.6N
Applications
This versatile tact switch is suitable for a wide range of applications, including:
- Consumer electronics
- Wearable devices
- Automotive electronics
- Industrial controls
- Medical devices
Why Choose This Product?
This tact switch offers a compelling combination of features:
- Compact Design: Its small 6x6mm footprint saves valuable space on your PCB.
- Reliable Performance: Designed for consistent and dependable operation.
- Easy Installation: Surface mount technology simplifies the assembly process.
- Cost-Effective Solution: Provides high-quality performance at a competitive price.
| Parameter | Value |
|---|---|
| Switch Type | Tact |
| Mounting | SMT |
| Size | 6x6mm |
| Operating Force | 1.6N |
