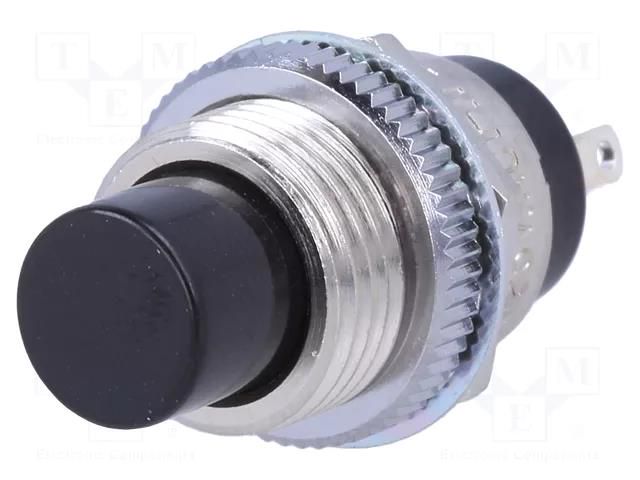

Switch: push-button; Pos: 2; SPST; 2A/250VAC; 2A/30VDC; OFF-(ON) NKK SWITCHES
Product Code: SB4011NOM
Brand
More similar products
Delivery terms
2024-10-18 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 234 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
Brand
Switch: push-button; Pos: 2; SPST; 2A/250VAC; 2A/30VDC; OFF-(ON) NKK SWITCHES
Useful information
Specifications
Supplier product description
Switch: push-button; Pos: 2; SPST; 2A/250VAC; 2A/30VDC; OFF-(ON)
Useful information
Supplier parameters
Product code
SB4011NOM
Supplier's product code
SB4011NOM
Product ID
U-1930436
AC contacts rating @R
2A / 250V AC
Body dimensions
Ø12x18mm
Contact material
silver
Contacts configuration
SPST
DC contacts rating @R
2A / 30V DC
Electrical life
10000 cycles
Leads
for soldering
Manufacturer
NKK SWITCHES
Manufacturer series
SB
Max. contact resistance
:10mΩ
Min. insulation resistance
200MΩ
Mounting
panel
Mounting hole diameter
Ø12.5mm
Number of positions
2
Operating temperature
-10...70°C
Stable positions number
1
Switching method
OFF-(ON)
Type of switch
push-button
Unit price
No
Brand
NKK Nikkai
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
