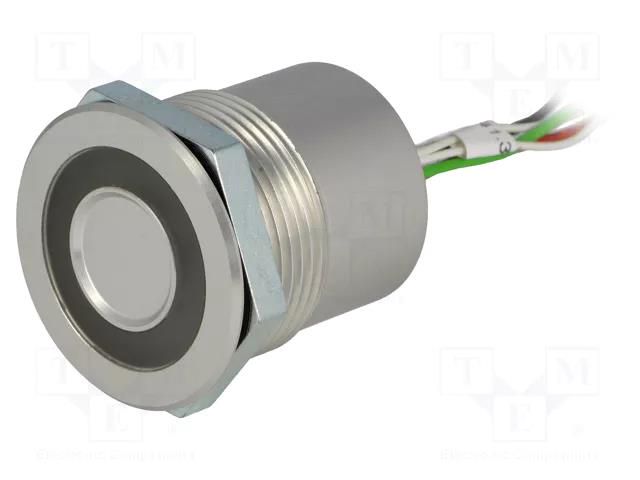

Switch: piezoelectric; Pos: 2; SPST-NO; 0.1A/42VAC; 0.1A/60VDC SCHURTER
Product Code: 1241.3012
Brand
More similar products
Delivery terms
2024-07-18 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 3 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
Switch: piezoelectric; Pos: 2; SPST-NO; 0.1A/42VAC; 0.1A/60VDC
Useful information
Supplier parameters
NomNr
1241.3012
Supplier's product code
1241.3012
Product ID
U-68123
AC contacts rating @R
0.1A / 42V AC
Backlight colour
red/green
Body colour
silver
Body material
aluminium
Button shape
flat
Contacts configuration
SPST-NO
DC contacts rating @R
0.1A / 60V DC
Electrical life
20000000 cycles
Illumination
LED
Illumination voltage
24V DC
IP rating
IP67
Leads
leads 200mm
Manufacturer
SCHURTER
Manufacturer series
PSE NO 30
Mechanical impact resistance
IK02
Mounting hole diameter
Ø30mm
Number of positions
2
Operating Force
3N
Operating temperature
-20...60°C
Stable positions number
1
Switching method
OFF-(ON)
Type of switch
piezoelectric
Brand
SCHURTER
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
