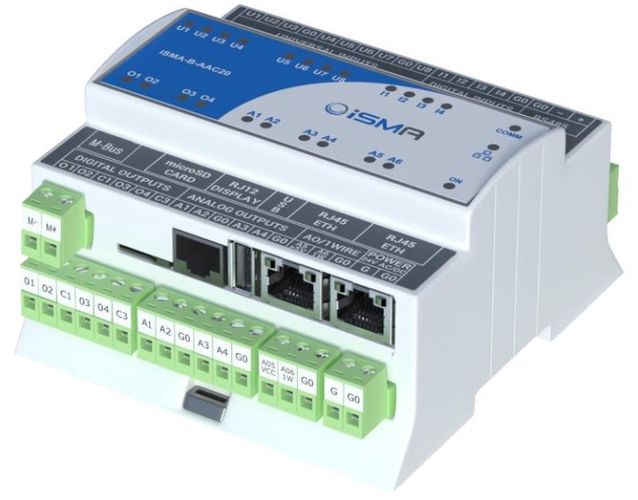

Freely programmable Sedona controller iSMA-B-AAC20-M with optional M-BUS interface, 8UI, 4DI, 4DO, 4/6 AO, 1x1wire,1xRS485, 1xUSB, 2x IP without displ
Delivery terms
Pickup in department
Pickup in department For free
Quantity in shop
 Not available | Central Warehouse |
| Not available | Tallinn Office |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
€3.50
Product description
iSMA-B-AAC20 controller is equipped with 22 Inputs/Outputs. The application for control algorithm can be created and modified in real-time by free software iSMA Tool or by standard Niagara AX Workbench.
As an Integration Controller, iSMA-B-AAC20 can be a platform for integration and control of Modbus (RTU, ASCII, TCP), BACnet (MS/TP, IP), 1-Wire, M-BUS (Option) and DALI (Option) devices. This controller has 2x Fast Ethernet ports with switch mode.
Up to 128 devices can be connected to RS485 port (Modbus RTU/ASCII or BACnet MS/TP).
Up to 32 sensors can be connected to the 1-Wire protocol.
Up to 64 DALI ballasts can be connected to DALI interface.
Up to 20 meters can be connected to the M-Bus interface.
iSMA-B-AAC20
Useful information
Specifications
Other products of the same brand
Other products in this category
Experimental product description generated by artificial intelligence
Freely Programmable Sedona Controller iSMA-B-AAC20-M
The iSMA CONTROLLI iSMA-B-AAC20-M is a versatile and powerful freely programmable controller ideal for building automation and HVAC systems. This advanced control device offers a large number of inputs and outputs, making it suitable for a wide range of applications.
Key Features and Benefits
This programmable logic controller (PLC) boasts several key features that set it apart:
- Sedona Framework 1.2 Support: Enables efficient and flexible programming.
- Extensive I/O: Features 8 universal inputs (8UI), 4 digital inputs (4DI), 4 digital outputs (4DO), and 4/6 analog outputs (4/6AO). This allows for seamless integration with various sensors and actuators.
- Multiple Communication Interfaces: Equipped with 2 Ethernet ports, RS485, USB, 1-Wire, and optional M-Bus interface for broad connectivity and system integration.
- Versatile Communication Protocols: Supports Modbus, BACnet, and other open communication protocols for easy integration into existing systems.
- Easy Programming: Utilizes the Sedona Virtual Machine (SVM) for simplified and efficient real-time programming.
- Optional LCD Display: Provides a user-friendly interface for local operation and monitoring.
- Robust Construction: Designed for DIN rail mounting or direct panel mounting, ensuring secure and reliable installation.
Applications
The iSMA-B-AAC20-M is well-suited for a variety of applications, including:
- Building Automation
- HVAC Systems
- Industrial Control
- Process Automation
Why Choose the iSMA-B-AAC20-M?
This programmable controller offers a compelling combination of features, flexibility, and ease of use. Its extensive I/O capabilities, multiple communication interfaces, and support for various protocols make it a highly adaptable solution for diverse control applications. The Sedona Framework simplifies programming, while the optional LCD display enhances local operation.
| Parameter | Value |
|---|---|
| Universal Inputs | 8 |
| Digital Inputs | 4 |
| Digital Outputs | 4 |
| Analog Outputs | 4/6 |
| Communication | 2x Ethernet, RS485, USB, 1-Wire, Optional M-Bus |
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail toš you: [email protected].
