Product description

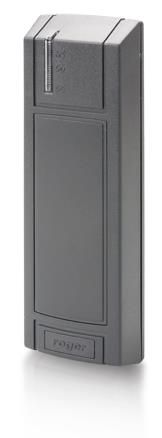

Roger PR312EM-BK-G
Specifications
SKU
U-2529137
Product code
PSKPR312EMBKG
Supplier product description
- Dark grey enclosure
- Built-in EM 125 kHz proximity reader
- Without keypad.
| General features | PR312EM, PR312MF, PR612, PR622, PR602LCD-DT | PR102DR | PR402DR |
| 12VDC supply | + | + | + |
| 24VDC, 18VAC supply | – | – | + except for PR402DR-12VDC |
| Built-in EM 125 kHz proximity reader | + except for PR312EM | – | – |
| Built-in 13.56 MHz MIFARE proximity reader | PR312MF, PR602LCD-DT | – | – |
| Buzzer | + | – | – |
| Keypad | + except for PR622 | – | – |
| Mountable directly on a DIN rail 35mm | – | + | + |
| Outdoor operation | + | – | – |
| Programmable inputs/outputs | 3/3 | 2/2 | 8/4 |
| First relay output | 1.5A/30V | 1.5A/30V | 1.5A/30V |
| Second relay output | – | – | 5A 30V or 230VAC |
| Tamper | + | – | – |
| Programmed manually | – | – | – |
| Programmed from PC | + | + | + |
| CE mark | + | + | + |
 | |||
| Communication | |||
| |||
| RS485 | + | + | + |
| RACS Clock&Data | + | + | + |
| Wiegand 26..66bit | PR602LCD-DT only | – | + |
| Magstripe | PR602LCD-DT only | – | + |
| Operation with RFT1000 readers | + | + | + |
| Operation with long range readers | PR602LCD-DT only | – | + |
| |||
| Functionality | |||
| |||
| Number of users | 4K | 4K | 4K |
| Built-in event buffer | 32K | 32K | 32K |
| Event buffer in network equipped with CPR32-NET | 33M | 33M | 33M |
| Real time clock with battery backup | + | + | + |
| User groups | + | + | + |
| Access zones | + | + | + |
| Schedules | + | + | + |
| Access control in elevators | + XM-8 required | + XM-8 required | + XM-8 required |
| Local APB | + | + | + |
| Global APB (CPR32 required) | + | + | + |
| Interlocking | + | + | + |
| Advanced access options: two users mode, conditional access, high security mode | + | + | + |
| Hotel options | – | – | – |
| Operation with turnstiles | + XM-2 recommended | – | + |
| Operation with barriers | + | + | + |
| Random user inspection | + | + | + |
| |||
| Integration | |||
| |||
| Integration with T&A system (RCP Master) | + | + | + |
| Integration with intruder alarm system | + | + | + |
| Integration with CCTV system (CCTV-DVR) | + | + | + |
|
