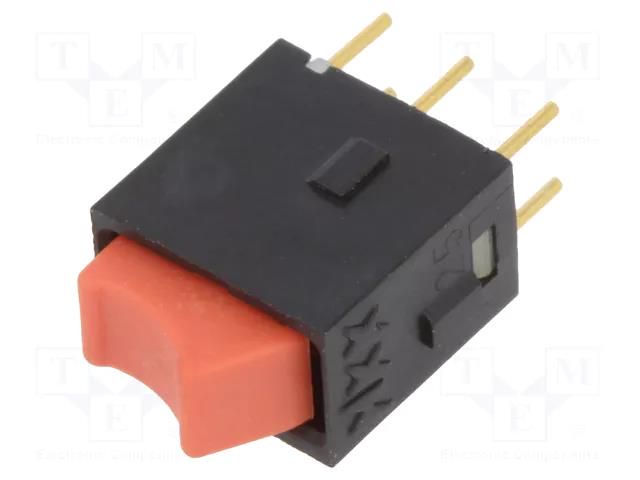

ROCKER; SPDT; Pos: 2; ON-ON; 0.1A/28VAC; 0.1A/28VDC; red; none; THT NKK SWITCHES
Product Code: GW12RCP
Brand
More similar products
Delivery terms
2024-07-25 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 46 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
Brand
ROCKER; SPDT; Pos: 2; ON-ON; 0.1A/28VAC; 0.1A/28VDC; red; none; THT NKK SWITCHES
Useful information
Specifications
Supplier product description
ROCKER; SPDT; Pos: 2; ON-ON; 0.1A/28VAC; 0.1A/28VDC; red; none; THT
Useful information
Supplier parameters
Product code
GW12RCP
Brand
NKK Nikkai
Supplier's product code
GW12RCP
Product ID
U-2413098
AC contacts rating @R
0.1A / 28V AC
Body colour
black
Body dimensions
4.5x7x7mm
Body material
polyamide
Button shape
rectangular
Contact material
phosphor bronze
Contact plating
gold-plated
Contacts configuration
SPDT
DC contacts rating @R
0.1A / 28V DC
Electrical life
50000 cycles
Illumination
none
Key button colour
red
Kind of material
fiber glass reinforced
Leads
for soldering
Manufacturer
NKK SWITCHES
Manufacturer series
GW
Max. contact resistance
:80mΩ
Mechanical durability
50000 cycles
Min. insulation resistance
500MΩ
Mounting
THT
Number of positions
2
Number of terminals
5
Operating Force
1.7N
Operating temperature
-30...85°C
Poles number
1
Stable positions number
2
Switching method
ON-ON
Terminal pitch
2.54mm
Type of switch
ROCKER
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
