Rocker switch; ON-ON, fixed, 6pins. 10A/250Vac, 32x22x26.6mm double SPST red
Product Code: R13-90P-CC
Brand
More similar products
Pickup in department 1-5 b.d.
 >10 pcs | Central Warehouse |
 Not available | Tallinn Office |
Home delivery 1-5 b.d.
Delivery to DPD Pickup locations 1-5 b.d.
Products purchased together
Delivery terms
Pickup in department
Pickup in department For free
Orders are processed and shipped on weekdays from 8:00 a.m. to 5:00 p.m.
When your order is ready for collection, we will inform you by SMS and e-mail.
Quantity in shop
| >10 pcs | Central Warehouse |
| Not available | Tallinn Office |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
Weight
0.0144 kg.
Brand
Jungiklio išmatavimai 32 x 22 x 26.6 mm; montavimo kiaurymės išmatavimai 30.2 x 22.2 mm; kontaktai 6.3 x 0.8 mm; degumo indeksas UL94V-2; AC 10 A / 250 V; max kontaktų varža 50 mΩ
Specifications
SKU
122942
Weight
0.0144 kg.
Fixation, 1-Su / 0-Be
With
Brand
Switch shape
Rectangle
Connection type
ON-ON
Key color
Red
Contact configuration
SPST
Number of contacts
6
Body color
Black
Current, A
10
Type
Switch
Control voltage, V
250
Product code
R13-90P-CC
Rated voltage AC, V
250
Supplier product description
ROCKER; SPDT x2; Pos: 2; ON-ON + ON-ON; 10A/250VAC; red; none; 50mΩ
Supplier parameters
AC contacts rating @R
10A / 250V AC
Body colour
black

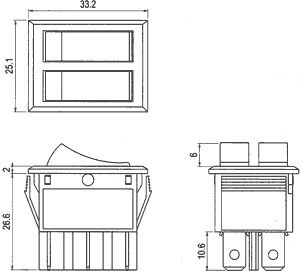

Body dimensions
32x22x26.6mm
Body material
polyamide
Button marking
blank
Contacts configuration
SPDT x2
Flammability rating
UL94V-2
Illumination
none
Key button colour
red
Leads
connectors 6,3x0,8mm
Manufacturer
SCI
Manufacturer series
R13-90P-AC
Max. contact resistance
:50mΩ
Mounting hole diameter
30.2x22.2mm
Number of positions
2
Operating temperature
-20...85°C
Panel thickness
max. 3mm
Shape
rectangular
Stable positions number
2
Switching method
ON-ON + ON-ON
Test voltage
1.5kV
Type of switch
ROCKER
