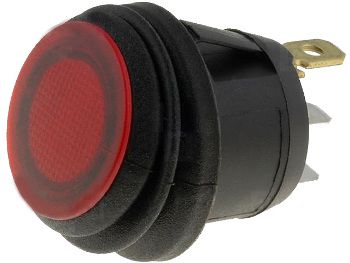

Rocker switch; ON-OFF, fixed. 4pins. 6A/250Vac, Ø17.5mm DPST-NO illuminated, red
Product Code: R13-527B2L-02/R
Brand
More similar products
Pickup in department 1-5 b.d.
 1 pcs | Central Warehouse |
 Not available | Tallinn Office |
Home delivery 1-5 b.d.
Delivery to DPD Pickup locations 1-5 b.d.
Products purchased together
Delivery terms
Pickup in department
Pickup in department For free
Orders are processed and shipped on weekdays from 8:00 a.m. to 5:00 p.m.
When your order is ready for collection, we will inform you by SMS and e-mail.
Quantity in shop
| 1 pcs | Central Warehouse |
| Not available | Tallinn Office |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
Weight
0.0074 kg.
Brand
Jungiklio išmatavimai Ø17.5 x 18 mm; apsaugos reitingas IP65; AC 6 A / 250 V; pašvietimas neoninė lemputė 230V; kontaktai 4.8 x 0.8 mm; max kontaktų varža 50 mΩ; degumo indeksas UL94V-2
Specifications
SKU
123394
Weight
0.0074 kg.
Fixation, 1-Su / 0-Be
With fixation
Brand
Connection type
ON-OFF
Connecting contacts
Black
Number of contacts
3
Contact type
250Vac
Mounting hole
Round
Lighting
Red
Current, A
6
Type
Switch
Control voltage, V
250
Product code
R13-527B2L-02/R
Rated voltage AC, V
250
Supplier product description
Switch: push-button; Pos: 2; DPST-NO; 6A/250VAC; OFF-ON; IP65; red
Supplier parameters
AC contacts rating @R
6A / 250V AC
AC test voltage
1.5kV
Actuator colour
red
Backlight colour
red

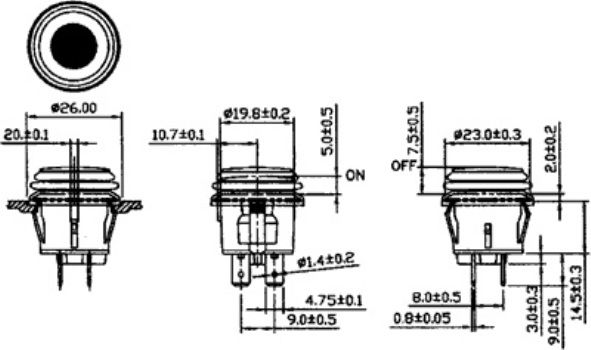

Body dimensions
Ø17.5x18mm
Body material
polyamide
Button shape
round
Contacts configuration
DPST-NO
Flammability rating
UL94V-2
Illumination
neon lamp
Illumination voltage
230V
IP rating
IP65
Leads
connectors 4,8x0,8mm
Manufacturer
SCI
Manufacturer series
R13-527
Max. contact resistance
:50mΩ
Mounting
on panel
Mounting hole diameter
Ø20.2mm
Number of positions
2
Operating temperature
-25...70°C
Panel thickness
max. 3mm
Stable positions number
2
Switching method
OFF-ON
Terminals plating
silver plated
Type of switch
push-button
