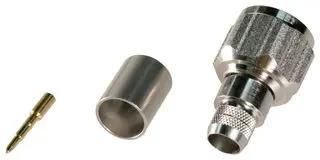

RF COAXIAL, N, STRAIGHT PLUG, 50OHM
Product Code: 11 N-50-7-43/133NE
Brand
More similar products
Delivery terms
2024-07-18 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 266 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Specifications
Supplier product description
RF COAXIAL, N, STRAIGHT PLUG, 50OHM; Connector Type:N Coaxial; Connector Body Style:Straight Plug; Coaxial Termination:Crimp; Impedance:50ohm; Coaxial Cable Types:RG213; Contact Material:Brass; Contact Plating:Gold Plated Contacts; Frequency Max:11GHz; Connector Mounting:Cable Mount; Product Range:N Series; SVHC:No SVHC (17-Dec-2015); Body Plating:Sucoplate; Centre Contact Resistance:1mohm; Coaxial Type:RG213; Connector Mounting Orientation:Cable; Contact Resistance:1mohm; Dielectric Material:PTFE; Insulation Resistance:10000Mohm; Material:Brass; No. of Mating Cycles:500; Operating Frequency Max:704GHz; Operating Temperature Max:165┬░C; Operating Temperature Min:-65┬░C; Termination Method:Crimp; VSWR:1.04; Withstand Voltage:2.5kV; Working Voltage:1kV
Useful information
Supplier parameters
Product code
11 N-50-7-43/133NE
Brand
HUBER+SUHNER
Supplier's product code
4163199
Product ID
U-3558059
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
