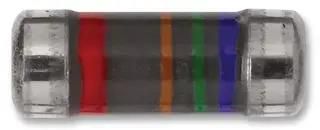

RES, MELF, 18R, 1%, 250MW, SMD
Product Code: MMA02040C1809FB300
Brand
More similar products
Delivery terms
2024-07-08 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 11458 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
RES, MELF, 18R, 1%, 250MW, SMD; Resistance:18ohm; Product Range:MMA 0204 Series; Voltage Rating:200V; Resistor Element Material:Metal Film; Power Rating:250mW; Resistance Tolerance:┬▒ 1%; Temperature Coefficient:┬▒ 50ppm/┬░C; MELF Resistor Case:MELF 0204 [3715 Metric]; Automotive Qualification Standard:-; SVHC:No SVHC (15-Jan-2019); Body Diameter:1.4mm; External Length / Height:3.6mm; Full Power Rating Temperature:70┬░C; No. of Pins:2Pins; Operating Temperature Max:125┬░C; Operating Temperature Min:-55┬░C; Operating Temperature Range:-55┬░C to +125┬░C; Reel Quantity:3000; Resistor Mounting:Surface Mount Device; Temperature Coeff. +:50ppm/┬░C; Temperature Coeff. -:50ppm/┬░C; Tolerance +:1%; Tolerance -:1%; Voltage Rating V DC:200V; Voltage Rating VAC:200V
Useful information
Supplier parameters
Product code
MMA02040C1809FB300
Brand
VISHAY
Supplier's product code
3087578
Product ID
U-1965857
