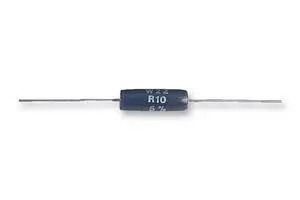

RES, 10K, 5%, 7W, AXIAL, WIREWOUND
Product Code: W22-10KJI
Brand
More similar products
Delivery terms
2024-07-25 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 3010 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Specifications
Supplier product description
RES, 10K, 5%, 7W, AXIAL, WIREWOUND; Resistance:10kohm; Product Range:W22 Series; Power Rating:7W; Resistance Tolerance:┬▒ 5%; Resistor Case Style:Axial Leaded; Voltage Rating:200V; Resistor Element Material:Wirewound; Temperature Coefficient:┬▒ 75ppm/┬░C; Automotive Qualification Standard:-; SVHC:No SVHC (15-Jan-2019); Body Diameter:8mm; External Length / Height:22mm; Full Power Rating Temperature:70┬░C; Lead Diameter:0.8mm; Lead Length:23.1mm; No. of Pins:2Pins; Operating Temperature Max:350┬░C; Operating Temperature Min:-55┬░C; Operating Temperature Range:-55┬░C to +350┬░C; Resistor Mounting:Through Hole; Temperature Coeff. +:75ppm/┬░C; Temperature Coeff. -:75ppm/┬░C; Tolerance +:5%; Tolerance -:5%; Voltage Rating V DC:200V
Useful information
Supplier parameters
Product code
W22-10KJI
Brand
TT electronics
Supplier's product code
9504494
Product ID
U-3673067
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
