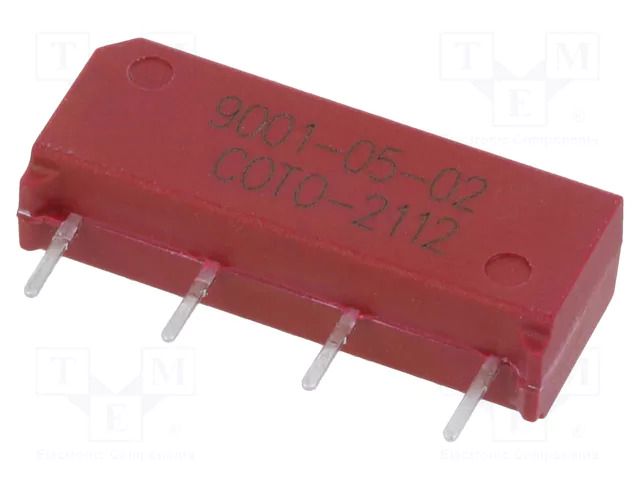

Relay: reed switch; SPST-NO; Ucoil: 5VDC; 0.5A; max.200VDC; 10W COTO TECHNOLOGY
Product Code: 9001-05-02
Brand
More similar products
Delivery terms
2024-10-08 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 6 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
Brand
Relay: reed switch; SPST-NO; Ucoil: 5VDC; 0.5A; max.200VDC; 10W COTO TECHNOLOGY
Useful information
Specifications
Supplier product description
Relay: reed switch; SPST-NO; Ucoil: 5VDC; 0.5A; max.200VDC; 10W
Useful information
Supplier parameters
Product code
9001-05-02
Brand
COTO TECHNOLOGY
Supplier's product code
9001-05-02
Product ID
U-2217154
#Promotion
maintenance_202308
Body dimensions
19.3x8.1x5.08mm
Case
SIP
Coil resistance
500Ω
Contact current max.
0.5A
Contact resistance
0.2Ω
Contacts configuration
SPST-NO
Manufacturer
COTO TECHNOLOGY
Mounting
THT
Operating temperature
-20...85°C
Rated coil voltage
5V DC
Relay series
9000
Switched voltage
max. 200V DC
Switching capacity
10W
Terminal pitch
5.08mm
Type of relay
reed switch
Unit price
No
