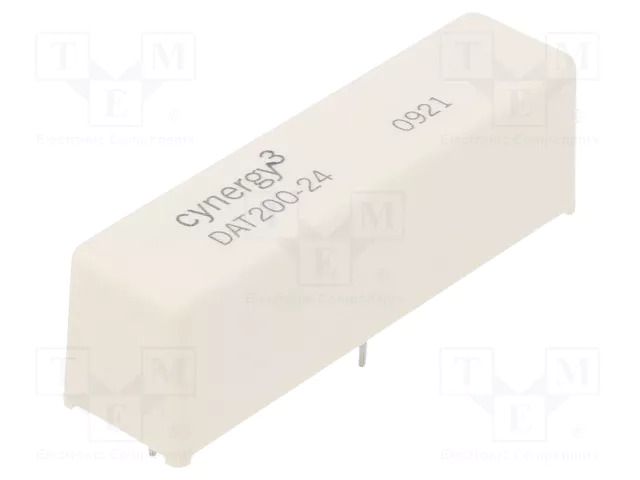

Relay: reed switch; SPST-NO; Ucoil: 24VDC; 5A; max.2.5VDC; PCB; D SENSATA / CYNERGY3
Product Code: DAT200-24
Brand
More similar products
Delivery terms
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Not available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
Relay: reed switch; SPST-NO; Ucoil: 24VDC; 5A; max.2.5VDC; PCB; D
Useful information
Supplier parameters
Product code
DAT200-24
Brand
SENSATA
Supplier's product code
DAT200-24
Product ID
U-2218084
#Promotion
maintenance_202308
Body dimensions
60x15.8x18.5mm
Coil resistance
780Ω
Coil voltage min.
20V DC
Contact current max.
5A
Contact material
tungsten
Contact resistance
600Ω
Contacts configuration
SPST-NO
Electrical life
1000000000 cycles
Insulation voltage
17kV
Manufacturer
SENSATA / CYNERGY3
Mounting
PCB
Operate time
6ms
Operating temperature
20...70°C
Rated coil voltage
24V DC
Relay series
D
Release time
1ms
Switched voltage
max. 2.5kV AC
Type of relay
reed switch
Unit price
No
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
