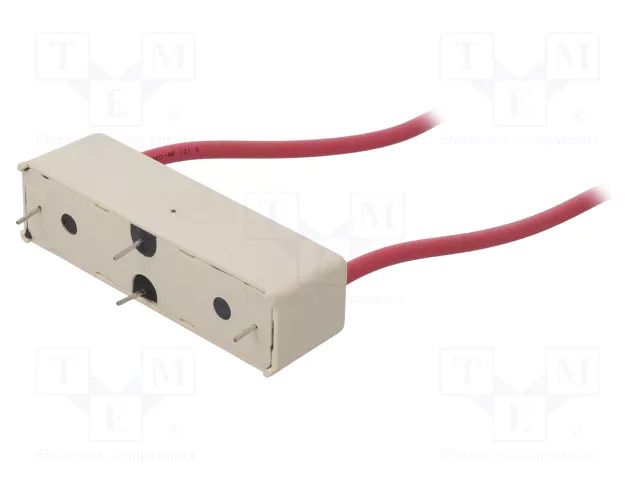

Relay: reed switch; SPST-NO; Ucoil: 24VDC; 2A; max.7kVDC; max.7kVAC SENSATA / CYNERGY3
Product Code: DAT72415F
Brand
More similar products
Delivery terms
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Not available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
Relay: reed switch; SPST-NO; Ucoil: 24VDC; 2A; max.7kVDC; max.7kVAC
Useful information
Supplier parameters
Product code
DAT72415F
Brand
SENSATA
Supplier's product code
DAT72415F
Product ID
U-159708
#Promotion
maintenance_202308
Body dimensions
60x18.5x15.8mm
Coil power consumption
30mW
Coil resistance
780Ω
Contact current max.
2A
Contact resistance
250mΩ
Contacts configuration
SPST-NO
Leads
leads 300mm
Manufacturer
SENSATA / CYNERGY3
Min. insulation resistance
10GΩ
Mounting
PCB
Operate time
3ms
Operating temperature
-20...70°C
Rated coil voltage
24V DC
Release time
2ms
Switched voltage
max. 7kV AC
Switching capacity
50W
Type of relay
reed switch
