Supplier product description

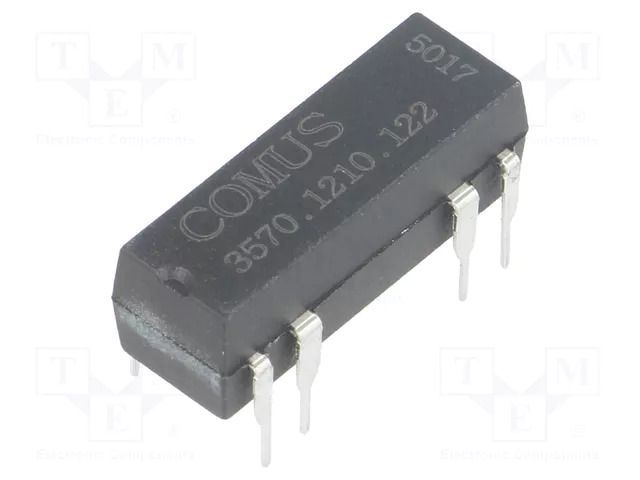

Relay: reed switch; SPST-NO; Ucoil: 12VDC; 500mA; max.150VDC; 10W
Useful information
Supplier parameters
NomNr
3570.1210.122
Brand
COMUS
Supplier's product code
3570.1210.122
Product ID
U-83718
Body dimensions
19.5x6.9x6.9mm
Case
DIP14
Coil resistance
1kΩ
Coil voltage max.
16V DC
Coil voltage min.
9V DC
Contact current max.
0.5A
Contact resistance
0.15Ω
Contacts configuration
SPST-NO
Manufacturer
COMUS
Mounting
THT
Operating temperature
-20...85°C
Optional equipment
electrostatic shield
Rated coil voltage
12V DC
Relay series
3570
Switched voltage
max. 150V DC
Switching capacity
10W
Terminal pitch
2.54mm
Type of relay
reed switch
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
