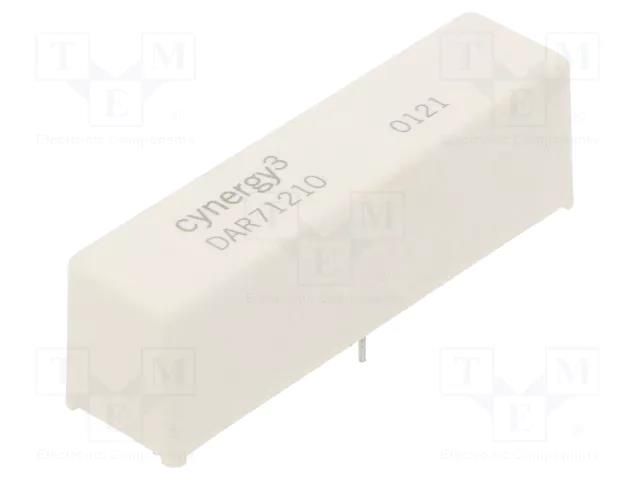

Relay: reed switch; SPST-NO; Ucoil: 12VDC; 4A; max.1VDC; max.1kVAC SENSATA / CYNERGY3
Product Code: DAR71210
Brand
More similar products
Delivery terms
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Not available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
Relay: reed switch; SPST-NO; Ucoil: 12VDC; 4A; max.1VDC; max.1kVAC
Useful information
Supplier parameters
Body dimensions
60x15.8x18.5mm
Coil resistance
150Ω
Coil voltage min.
9V DC
Contact current max.
4A
Contact material
rhodium
Contact resistance
15Ω
Contacts configuration
SPST-NO
Electrical life
10000000000 cycles
Insulation voltage
17kV
Manufacturer
SENSATA / CYNERGY3
Mounting
PCB
Operate time
3ms
Operating temperature
-20...70°C
Rated coil voltage
12V DC
Relay series
D
Release time
2ms
Switched voltage
max. 1kV AC
Type of relay
reed switch
Product code
DAR71210
Brand
SENSATA
Supplier's product code
DAR71210
Product ID
U-2218081
