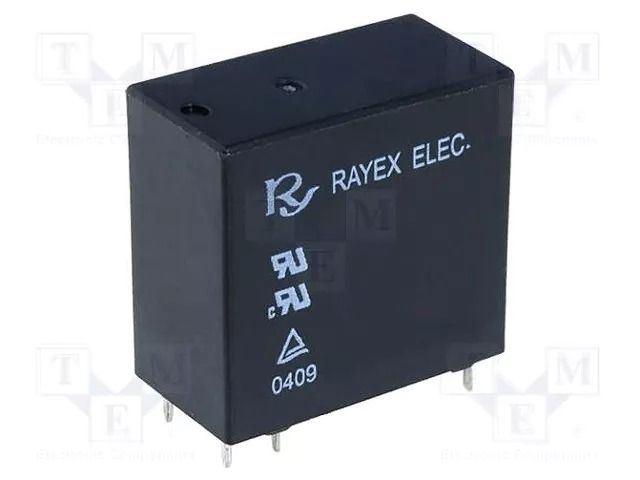

Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 16A Recoy/RAYEX ELECTRONICS
Product Code: LM1HA-5D
More similar products
Delivery terms
2024-08-16 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 273 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 16A Recoy/RAYEX ELECTRONICS
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 16A
Useful information
Supplier parameters
AC contacts rating @R
16A / 250V AC
Body dimensions
29x20.5x12.5mm
Coil current
106.4mA
Coil power consumption
530mW
Coil resistance
47Ω
Contact current max.
16A
Contact material
AgCdO
Contact resistance
100mΩ
Contacts configuration
SPST-NO
DC contacts rating @R
16A / 30V DC
Manufacturer
Recoy/RAYEX ELECTRONICS
Mounting
PCB
Operate time
15ms
Operating temperature
-40...80°C
Rated coil voltage
5V DC
Relay series
LM1H
Relay variant
miniature
Release time
10ms
Switched voltage
max. 30V DC
Terminal pitch
5mm
Type of relay
electromagnetic
Brand
Recoy/RAYEX ELECTRONICS
Supplier's product code
LM1HA-5D
Product ID
U-239278
NomNr
LM1HA-5D
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
