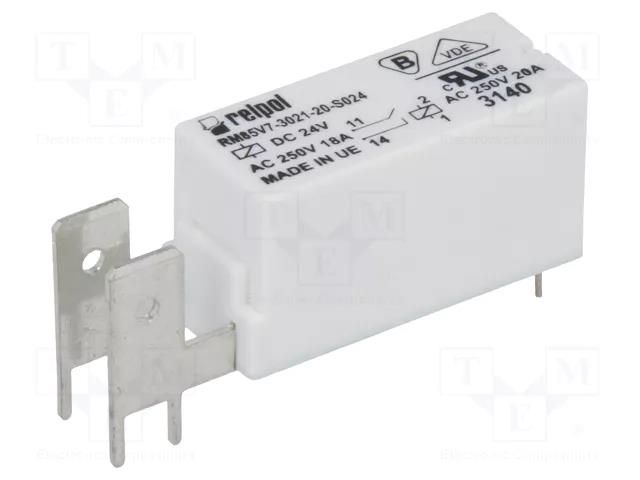

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 20A; 20A/250VAC RELPOL
Product Code: RM85V7-Z-24VDC
Delivery terms
2024-07-19 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 52 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 20A; 20A/250VAC
Useful information
Supplier parameters
NomNr
RM85V7-Z-24VDC
Brand
RELPOL
Supplier's product code
RM85V7-Z-24VDC
Product ID
U-312142
AC contacts rating @R
20A / 250V AC
Body dimensions
29x12.7x15.7mm
Coil power consumption
250mW
Coil resistance
2.3kΩ
Coil voltage max.
72V DC
Coil voltage min.
18V DC
Contact current max.
20A
Contact resistance
100mΩ
Contacts configuration
SPST-NO
DC contacts rating @R
20A / 24V DC
IP rating
IP40
Leads
connectors 6,3x0,8mm
Manufacturer
RELPOL
Mounting
PCB
OEM number
855380
Operate time
8ms
Operating temperature
-40...105°C
Rated coil voltage
24V DC
Relay series
RM85V7
Relay variant
miniature
Release time
3ms
Switched voltage
max. 250V DC
Terminal pitch
7.5mm
Type of relay
electromagnetic
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
