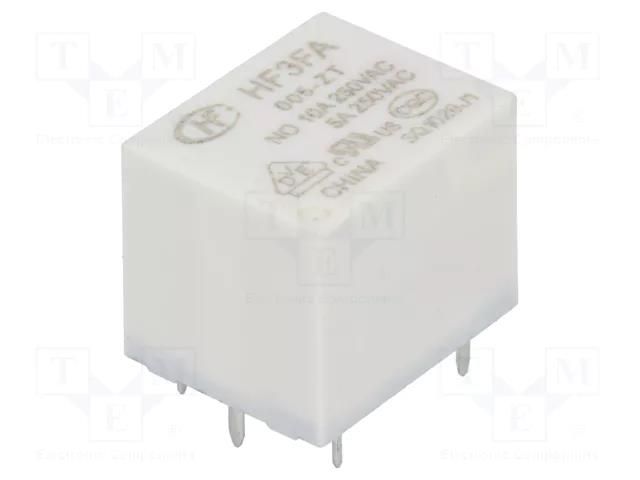

Relay: electromagnetic; SPDT; Ucoil: 5VDC; 10A; 10A/277VAC; PCB HONGFA RELAY
Product Code: HF3FA/005-ZT
Brand
More similar products
Delivery terms
2024-08-21 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 950 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
Brand
Relay: electromagnetic; SPDT; Ucoil: 5VDC; 10A; 10A/277VAC; PCB HONGFA RELAY
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 5VDC; 10A; 10A/277VAC; PCB
Useful information
Supplier parameters
NomNr
HF3FA/005-ZT
Brand
HONGFA RELAY
Supplier's product code
HF3FA/005-ZT
Product ID
U-204185
AC contacts rating @R
10A / 277V AC
Body dimensions
19x15.5x15.5mm
Coil power consumption
360mW
Coil resistance
70Ω
Coil voltage max.
6.5V DC
Coil voltage min.
3.75V DC
Contact current max.
10A
Contact material
AgSnO<sub>2</sub>
Contact resistance
100mΩ
Contacts configuration
SPDT
DC contacts rating @R
10A / 28V DC
Manufacturer
HONGFA RELAY
Mounting
PCB
Operate time
10ms
Operating temperature
-40...85°C
Rated coil voltage
5V DC
Relay variant
subminiature
Release time
5ms
Switched voltage
max. 28V DC
Type of relay
electromagnetic
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
