Supplier product description

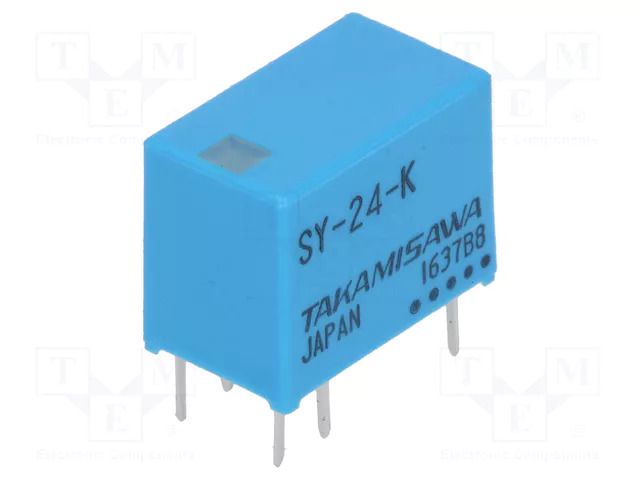

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 2A; 0.5A/120VAC; SY
Useful information
Supplier parameters
Product code
SY-24-K
Supplier's product code
SY-24-K
Product ID
U-324983
AC contacts rating @R
0.5A / 120V AC
Body dimensions
12.5x7.4x9.4mm
Coil power consumption
175mW
Coil resistance
3.29kΩ
Coil voltage min.
16.8V DC
Contact current max.
2A
Contact material
AgPd/Au 0,2μm
Contact resistance
100mΩ
Contacts configuration
SPDT
DC contacts rating @R
1A / 24V DC
Electrical life
100000 cycles
Manufacturer
FUJITSU
Mechanical durability
5000000 cycles
Mounting
PCB
Operate time
5ms
Operating temperature
-30...80°C
Rated coil voltage
24V DC
Relay series
SY
Relay variant
subminiature
Switched voltage
max. 60V DC
Switching capacity
24W
Terminal pitch
2.54mm
Type of relay
electromagnetic
Brand
FUJITSU
