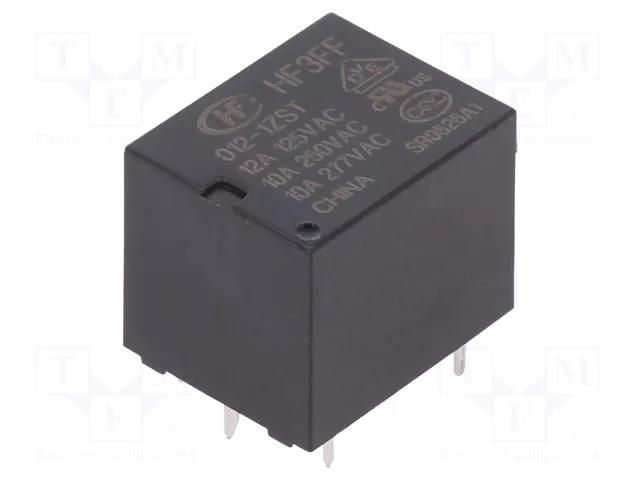

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 10A; 10A/277VAC; PCB HONGFA RELAY
Product Code: HF3FF/012-1ZST
Brand
More similar products
Delivery terms
2024-07-19 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 1747 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
Brand
Relay: electromagnetic; SPDT; Ucoil: 12VDC; 10A; 10A/277VAC; PCB HONGFA RELAY
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 12VDC; 10A; 10A/277VAC; PCB
Useful information
Supplier parameters
Brand
HONGFA RELAY
Supplier's product code
HF3FF/012-1ZST
Product ID
U-204201
AC contacts rating @R
10A / 277V AC
Body dimensions
19x15.5x15.2mm
Coil power consumption
360mW
Coil resistance
400Ω
Coil voltage max.
15.6V DC
Coil voltage min.
9V DC
Contact current max.
10A
Contact material
AgSnO<sub>2</sub>
Contact resistance
100mΩ
Contacts configuration
SPDT
DC contacts rating @R
10A / 28V DC
Manufacturer
HONGFA RELAY
Mounting
PCB
Operate time
10ms
Operating temperature
-40...70°C
Rated coil voltage
12V DC
Relay variant
miniature
Release time
5ms
Switched voltage
max. 28V DC
Terminal pitch
2mm
Type of relay
electromagnetic
NomNr
HF3FF/012-1ZST
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
