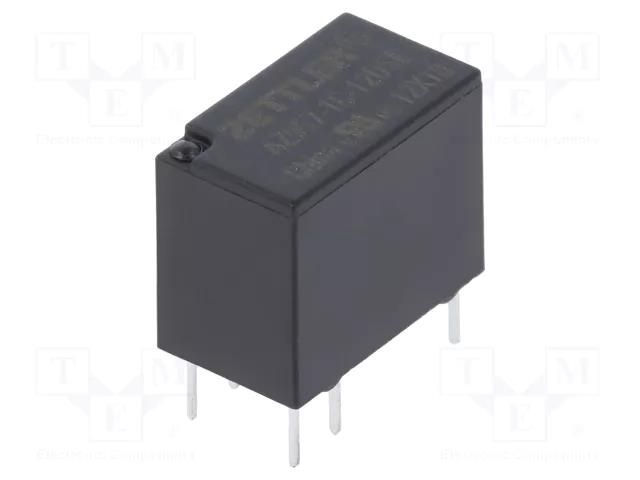

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 2A; 0.5A/125VAC; AZ957 ZETTLER
Product Code: AZ957-1C-12DSE
Delivery terms
2024-08-01 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 3581 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 12VDC; 2A; 0.5A/125VAC; AZ957
Useful information
Supplier parameters
Product code
AZ957-1C-12DSE
Supplier's product code
AZ957-1C-12DSE
Product ID
U-121385
AC contacts rating @R
0.5A / 125V AC
Body dimensions
12.8x7.8x10.3mm
Coil resistance
960Ω
Contact current max.
2A
Contact material
AgPd/Au 0,2μm
Contacts configuration
SPDT
DC contacts rating @R
1A / 30V DC
Manufacturer
ZETTLER
Mounting
PCB
Operate time
5ms
Operating temperature
-40...80°C
Rated coil voltage
12V DC
Relay series
AZ957
Relay variant
miniature
Release time
1ms
Switched voltage
max. 60V DC
Terminal pitch
2.54mm
Type of relay
electromagnetic
Brand
ZETTLER
