Supplier product description

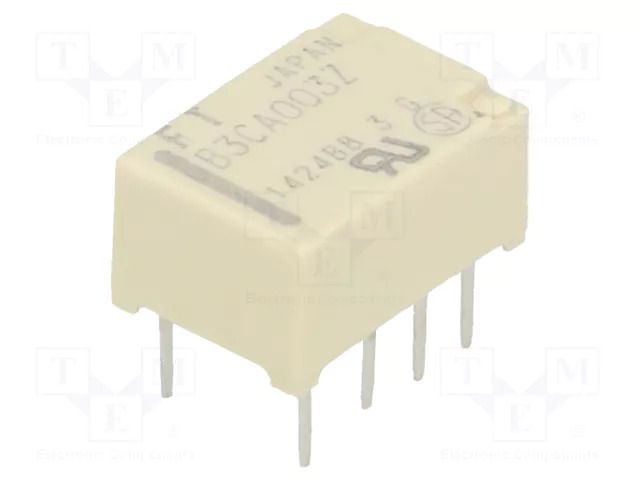

Relay: electromagnetic; DPDT; Ucoil: 3VDC; 2A; 0.3A/125VAC; FTR-B3
Useful information
Supplier parameters
Product code
FTR-B3CA003Z
Supplier's product code
FTR-B3CA003Z
Product ID
U-192505
AC contacts rating @R
0.3A / 125V AC
Body dimensions
10.6x7.2x5.2mm
Coil power consumption
140mW
Coil resistance
64.3Ω
Contact current max.
2A
Contact material
AgNi + Au
Contact resistance
75mΩ
Contacts configuration
DPDT
DC contacts rating @R
1A / 30V DC
Manufacturer
FUJITSU
Mounting
THT
Operating temperature
-40...85°C
Rated coil voltage
3V DC
Relay series
FTR-B3
Relay variant
subminiature
Switched voltage
max. 220V DC
Terminal pitch
2.2mm
Type of relay
electromagnetic
Brand
FUJITSU
