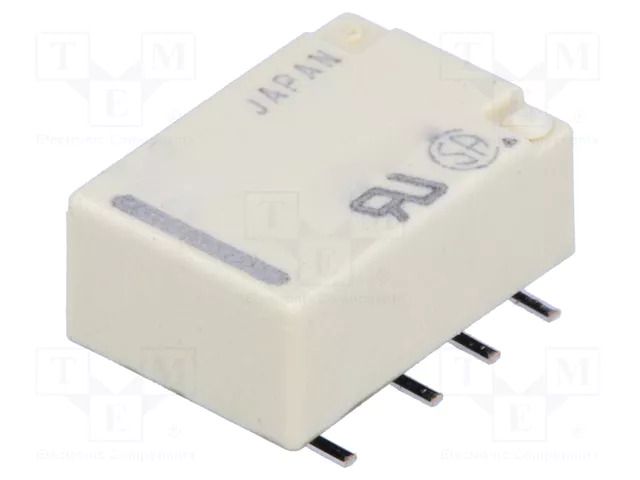

Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.3A/125VAC; SMT FUJITSU
Product Code: FTR-B3GA024Z-B10
Brand
More similar products
Delivery terms
2024-07-18 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 477 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.3A/125VAC; SMT
Useful information
Supplier parameters
NomNr
FTR-B3GA024Z-B10
Brand
FUJITSU
Supplier's product code
FTR-B3GA024Z-B10
Product ID
U-3249330
AC contacts rating @R
0.3A / 125V AC
Body dimensions
10.6x7.2x5.45mm
Coil power consumption
230mW
Coil resistance
2504Ω
Contact current max.
2A
Contact material
AgNi + Au
Contact resistance
75mΩ
Contacts configuration
DPDT
DC contacts rating @R
1A / 30V DC
Manufacturer
FUJITSU
Mounting
SMT
Operating temperature
-40...85°C
Rated coil voltage
24V DC
Relay series
FTR-B3
Relay variant
subminiature
Switched voltage
max. 220V DC
Terminal pitch
2.2mm
Type of relay
electromagnetic
