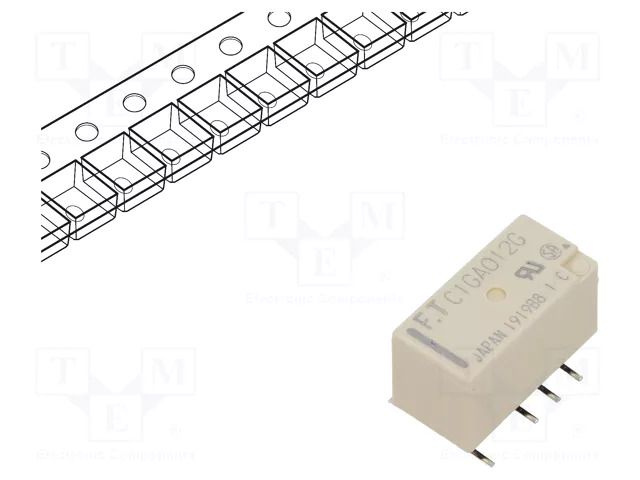

Relay: electromagnetic; DPDT; Ucoil: 12VDC; 2A; 0.3A/125VAC; FTR-C1 FUJITSU
Product Code: FTR-C1GA012G-B05
Brand
More similar products
Delivery terms
2024-08-22 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 816 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
Relay: electromagnetic; DPDT; Ucoil: 12VDC; 2A; 0.3A/125VAC; FTR-C1
Useful information
Supplier parameters
Product code
FTR-C1GA012G-B05
Supplier's product code
FTR-C1GA012G-B05
Product ID
U-192539
AC contacts rating @R
0.3A / 125V AC
Body dimensions
15.2x7.7x9.7mm
Coil power consumption
280mW
Coil resistance
514Ω
Contact current max.
2A
Contact material
AgPd/Au 0,2μm
Contact resistance
0.15Ω
Contacts configuration
DPDT
DC contacts rating @R
1A / 30V DC
Manufacturer
FUJITSU
Mounting
SMT
Operating temperature
-40...85°C
Rated coil voltage
12V DC
Relay series
FTR-C1
Relay variant
subminiature
Switched voltage
max. 220V DC
Terminal pitch
2.54mm
Type of relay
electromagnetic
Brand
FUJITSU
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
