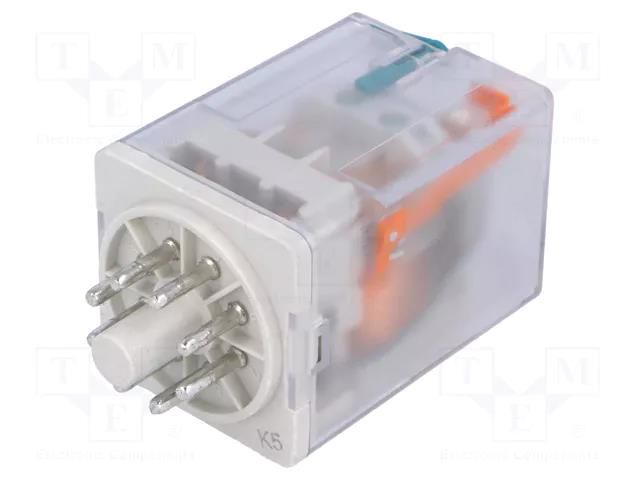

Relay: electromagnetic; DPDT; Ucoil: 110VDC; Icontacts max: 20A RELPOL
Product Code: R15-2P-110VDC
Delivery terms
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Not available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
Relay: electromagnetic; DPDT; Ucoil: 110VDC; Icontacts max: 20A
Useful information
Supplier parameters
NomNr
R15-2P-110VDC
AC contacts rating @R
10A / 250V AC
Body dimensions
35x35x54.5mm
Coil power consumption
1.5W
Coil resistance
9.2kΩ
Contact current max.
20A
Contact resistance
100mΩ
Contacts configuration
DPDT
DC contacts rating @R
10A / 24V DC
Electrical connection
round socket
Kind of connector
octal
Leads
stud terminals
Manufacturer
RELPOL
Mounting
socket
Number of pins
8
OEM number
802894
Operating temperature
-40...70°C
Optional equipment
mechanical indicator
Rated coil voltage
110V DC
Relay series
R15
Relay variant
industrial
Related items
GZ8
Switched voltage
max. 250V DC
Type of relay
electromagnetic
Brand
RELPOL
Supplier's product code
R15-2P-110VDC
Product ID
U-301530
