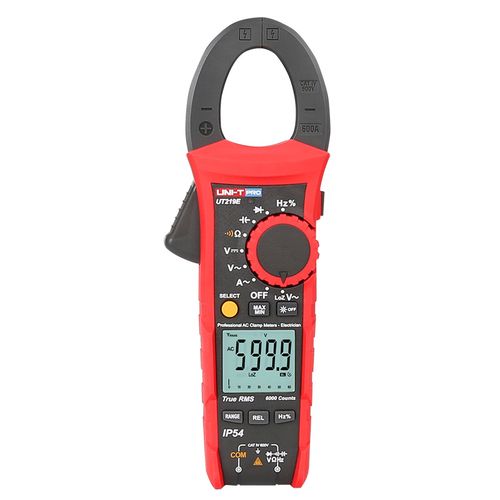

Profesional current clamp UT219E UNI-T
Delivery terms
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Pickup in department
Pickup in department For free
Quantity in shop
 Not available | Central Warehouse |
| Not available | Tallinn Office |
Home delivery
Home delivery
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
€3.50
Product description
Features
1. 2m drop proof, IP54, CAT IV 600V
2. Large 6000-digit LCD backlight (auto) display.
3. True RMS
4. LoZ voltage test, for ghost voltage measurement
5. MAX/MIN/REL testing mode, data hold, excluding the test lead interference of resistance measurement
| Specifications | ||
| Model | UT219E | |
| AC current (A) | 60.00A ~ 600.0A | ±(1.8%+6) |
| AC voltage (V) | 6.000V ~ 600.0V | ±(1.0%+6) |
| LoZ ACV | 600.0V | ±(2.5%+6) |
| DC voltage (V) | 600.0mV ~ 600.0V | ±(0.6%+3) |
| Resistance (Ω) | 600.0Ω ~ 60.00MΩ | ±(1.0%+3) |
| Capacitance | 60.00nF ~ 60.00mF | ±(4.0%+7) |
| Frequency | 60.00Hz ~ 10.00MHz | ±(0.1%+6) |
| Duty ratio | 0.1% ~ 99.9% | ±(2.6%+7) |
| Features | ||
| Display count | 6000 | |
| Auto/Manual range | √ | |
| Jaw size | 33mm | |
| True RMS | √ | |
| AC current frequency response | 40Hz~ 400Hz | |
| AC voltage frequency response | 40Hz~ 400Hz | |
| Diode test | 6V/10V | √ |
| Measuring digit conversion rate | times/s | 3 |
| Measuring analogue bar conversion rate | times/s | 10 |
| Analogue bar | 31 section | √ |
| LCD display (HTN) | interface | Single display |
| Auto power off | √ | |
| Low battery indication | √ | |
| Data hold (H) | √ | |
| Relative value (REL) | √ | |
| MAX/MIN | √ | |
| Functional selection (SELECT) | √ | |
| Auto backlight | √ | |
| 2m drop proof | √ | |
| Protection grade | IP54 | |
| Input impedance | ≥10MΩ | √ |
| General Characteristics | ||
| Power supply | AAA 1.5V alkaline battery × 3 | |
| LCD size | 35mm × 31mm | |
| Device color | red and grey | |
| Device weight | 338g | |
| Device size | 235mm × 83mm × 47mm | |
| Standard accessories | testing probes, batteries, carrying bag | |
| Standard individual packing | gift box, user manual, warranty card | |
| Standard quantity per carton | 20pcs | |
| Standard carton size | 575mm × 490mm × 330mm | |
| Standard carton gross weight |
| |
Useful information
Specifications
Experimental product description generated by artificial intelligence
Profesional current clamp UT219E UNI-T
The UNI-T UT219E is a professional-grade digital clamp meter designed for industrial use. This robust and durable instrument is built to withstand tough conditions and provides accurate measurements in various applications.
Key Features and Functions
- IP54 Ingress Protection: Resistant to dust and water splashes.
- 2-Meter Drop Protection: Withstands impacts from drops up to 2 meters.
- Large LCD Display: Features a dual-mode display for easy reading.
- TRMS AC Voltage and Current Measurement: Provides precise measurements of non-linear signals.
- LoZ Voltage Measurement: Solves issues with false voltage readings.
- Capacitance Measurement: Measures capacitance up to 60.00 mF.
- Multiple Measurement Functions: Offers a wide range of measurement capabilities, including AC/DC voltage, AC current, resistance, and more.
- Safety: Compliant with CAT IV 600V safety standards.
Applications
The UT219E is ideal for various professional applications, including:
- Electrical maintenance and troubleshooting
- Industrial automation
- HVAC/R
- Automotive diagnostics
Why Choose the UNI-T UT219E?
The UNI-T UT219E combines accuracy, durability, and a comprehensive feature set in a single, easy-to-use package. Its robust construction and advanced safety features make it a reliable tool for professionals working in demanding environments. Choose the UT219E for superior performance and peace of mind.
| Feature | Benefit |
|---|---|
| Rugged Design | Withstands harsh conditions |
| Accurate Measurements | Reliable results |
| Multiple Functions | Versatility for various tasks |
| Safety Features | Protects the user |
