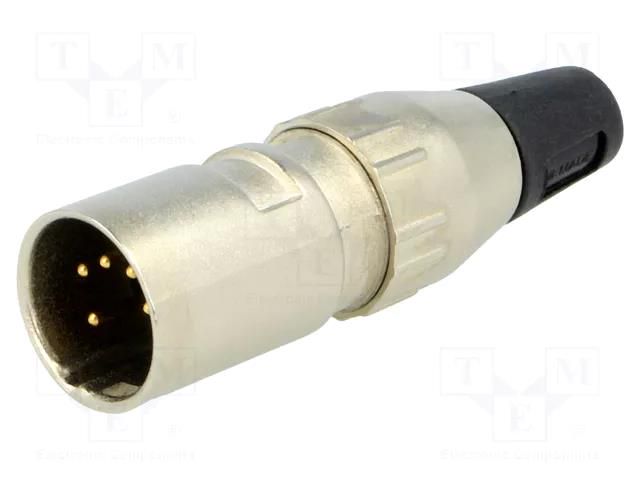

Plug; XLR; male; PIN: 5; straight; for cable; soldering; gold-plated DELTRON
Product Code: 705-0500
Brand
More similar products
Delivery terms
2024-07-29 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 69 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
Plug; XLR; male; PIN: 5; straight; for cable; soldering; gold-plated
Useful information
Supplier parameters
Body coating
nickel plated
Cable external diameter
2.8...8mm
Connector
plug
Contact material
brass
Contact plating
gold-plated
Current rating
7.5A
Electrical mounting
soldering
Enclosure material
zinc alloy
Flammability rating
UL94HB
Kind of connector
male
Manufacturer
DELTRON
Max. contact resistance
:10mΩ
Mechanical mounting
for cable
Number of pins
5
Operating temperature
-25...70°C
Rated voltage
50V
Spatial orientation
straight
Type of connector
XLR
Wire size
18AWG
Product ID
U-95964
Supplier's product code
705-0500
NomNr
705-0500
Brand
DELTRON
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
