Supplier product description

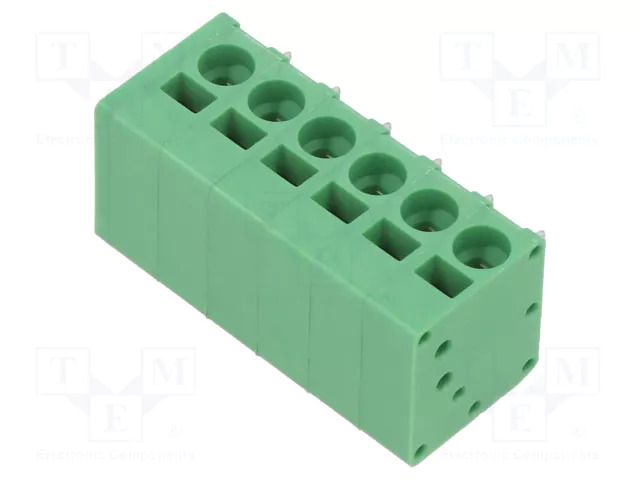

PCB terminal block; angled 90°; 5mm; ways: 6; on PCBs; 24AWG÷12AWG
Supplier parameters
NomNr
EB163A-06-C
Brand
ADAM TECH
Supplier's product code
EB163A-06-C
Product ID
U-3104076
Body material
polyamide
Colour
green
Connector
terminal
Connector pinout layout
1x6
Connectors features
assembling possibility
Contact material
copper alloy
Contacts pitch
5mm
Current rating
20A
Depth
13.5mm
Electrical mounting
THT
Flammability rating
UL94V-0
Height
14.4mm
Length
30mm
Manufacturer
ADAM TECH
Mechanical mounting
on PCBs
Number of ways
6
Operating temperature
-40...105°C
Rated voltage
300V
Spatial orientation
angled 90°
Type of connector
PCB terminal block
Wire size
24AWG...12AWG
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
