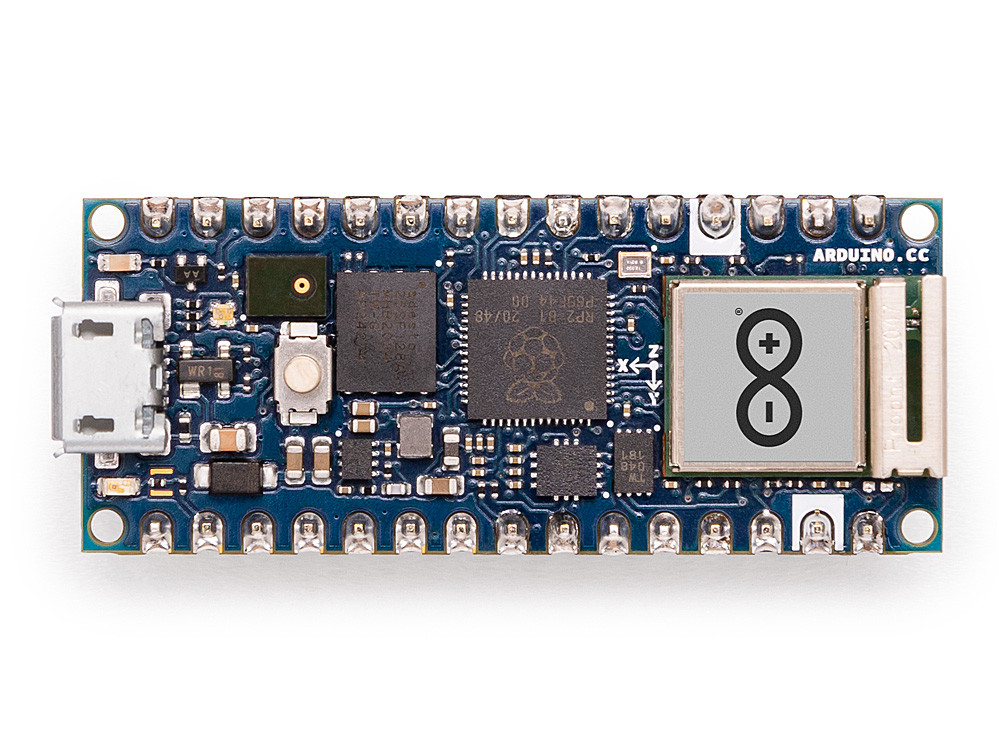

Arduino Nano RP2040 Connect

The Arduino Nano RP2040 is another board in the Arduino Nano series and the first board created in collaboration with the Raspberry Pi. The module is based on Raspberry Pi RP2040 microcontroller. This is the first module which combines RP2040 chip with additional sensors and wireless communication on PCB. The board is equipped with the RP2040 chip, 6-axis IMU sensors, U-Blox Nina chip for WiFi and Bluetooth wireless communication, as well as a microphone and RGB LED. This version does not have gold pin connectors soldered in. The IMU chip has machine learning capability, so additional detection algorithms are available. The input / output pins of the Arduino Nano RP2040 Connect operate at 3.3V.

Main features

Interfaces: USB, SPI, I2C, I2S, UART, PWM
U-Blox Nina chip for WiFi / Bluetooth wireless communication
MicroUSB connector for computer connection and 5V power supply
Built-in microphone, RGB LED and 6-axis IMU
Based on Raspberry Pi RP2040 microcontroller clocked at 133 MHz
Built-in 16MB Flash memory and 264kB SRAM
20 PWM pins, 8 analog pins and 22 digital pins
Standard dimensions for Nano series - 45 x 18 mm

Technical data

Power supply voltage	4.5 V to 21 V
Operating voltage of logic part	3,3 V
Output current 3.3 V	800 mA
RP2040 microcontroller	ARM Cortex M0 Dual-Core 133 MHz 264 kB SRAM 2 MB Flash DMA controller supports up to 16 MB Flash memory via QSPI bus programmable IO (PIO) to support external peripherals 4-channel ADC with internal temperature sensor, 0.5 MSa/s, 12-bit conversion SWD debugging
WiFi / Bluetooth module U-blox Nina W102	dual core Xtensa LX6 240 MHz 32-bit 520 kB SARAM on-chip memory 448 kB ROM for boot and core functions 16 MB Flash memory for code storage, includes hardware encryption for program and data protection 1 kB EFUSE for MAC address, module configuration, Flash encryption and Chip-ID IEEE 802.11 b/g/n 2.4 GHz WiFi Bluetooth 4.2 built-in antenna (PIFA) 4 x 12-bit ADC 3 x I2C, SDIO, CAN, QSPI
Memory	AT25SF128A 16MB NOR Flash 532 Mb/s QSPI data transfer 100k programming / erase cycles
Sensor IMU 6-axis ST LSM6DSOXTR	3D gyroscope: ± 2 / ± 4 / ± 8 / ± 16 g full scale 3D accelerometer: ± 125 / ± 250 / ± 500 / ± 1000 / ± 2000 dps full scale advanced pedometer, step detector and step counter Motion detection and roll detection standard interrupts: free fall, 6D/4D orientation wake-up, click, double click programmable finite state machine: accelerometer, gyroscope and external sensors machine learning core embedded temperature sensor
MEMS ST microphone MP34DT06JTR	AOP = 122.5 dBSPL signal to noise ratio 64 dB omnidirectional sensitivity frequency -26 dBFS ± 1 dB
RGB LED	common anode connected to U-blox Nina W102 GPIO
Microchip ATECC608A cryptographic chip	cryptographic coprocessor with secure hardware key storage I2C, SWI Hardware support for symmetric algorithms: SHA-256 and HMAC HASH including off-chip context saving/restoration AES-128: encryption/decryption, Galois Field Multiply da GCM internal high quality random number generator NIST SP 800-90A/B/C Secure boot support full ECDSA code signature validation, optional hash/signature Optional communication key disablement prior to secure boot Message encryption/authentication to prevent attacks
I/O	14 x digital pin 8 x analog pin microUSB UART, SPI, I2C, I2S, PIO
Slot	microUSB
Operating temperature	from -20°C to 80°C
Dimensions	45 x 18 mm
