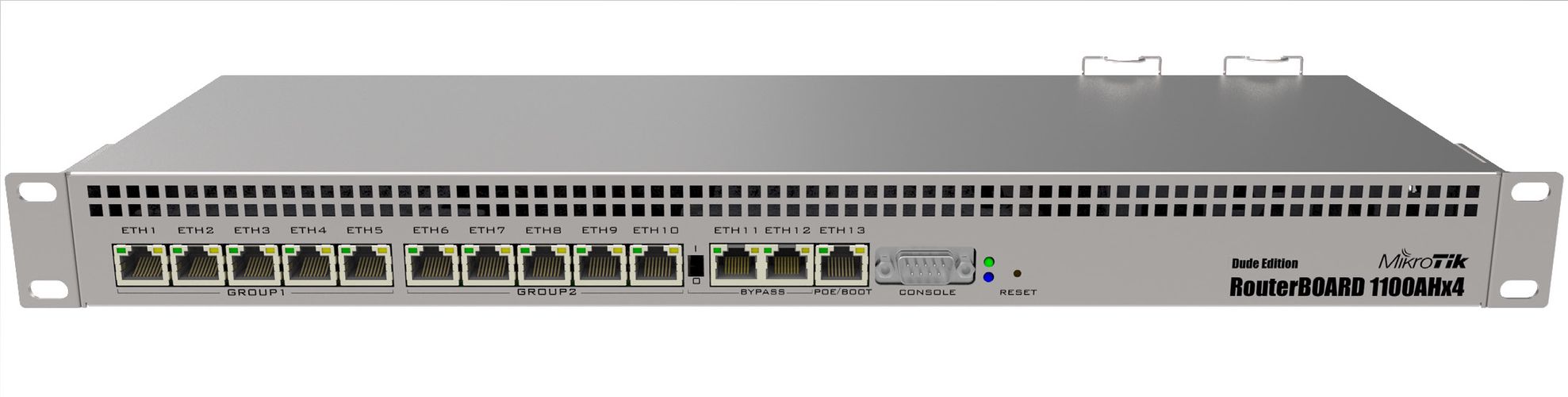

MikroTik RB1100AHx4 Dude Edition | Router | 13x RJ45 1000Mb/s, 1x microSD, 2x SATA, 2x M.2, 60GB drive included, MIKROTIK
Delivery terms
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
€3.50
Supplier product description
Efficient device
RB1100AHx4 Dude Edition uses a new four-core Cortex A15 chip. The chip is clocked at 1.4GHz, which provides maximum throughput up to 7.5Gbit additionally supports IPsec hardware acceleration and is faster than any other RouterBOARD device.
Diversity for storage
The device has several quick connectors for storage (two SATA and two M.2) to use the Dude database, cache or other storage. It contains an M.2 drive with 60 GB and comes with a Dude package that has already been installed for full functionality. The device has two IEC emergency power connectors, supports passive or 802.3at/af PoE input and has a DC telecommunications connector for -48V DC. It uses passive cooling.
| Number of LAN ports | 13x [10/100/1000M (RJ45)] |
| 3G/4G USB modem compatibility | No |
| Additional connectors / interfaces | 1x microSD |
| Additional connectors / interfaces | 2x M.2 |
| Additional connectors / interfaces | 2x SATA 3 |
| Additional connectors / interfaces | RS232 |
| Built-in processor | Yes |
| Cables included | AC |
| CPU frequency | 1,4 GHz |
| Depth | 47 |
| DSL WAN | No |
| eSATA ports quantity | 2 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 13 |
| Ethernet LAN data rates | 10,100,1000 |
| Ethernet WAN | No |
| Harmonized System (HS) code | 85176990 |
| Height | 148 |
| Internal storage capacity | 60 |
| LED indicators | Yes |
| Management | By web browser |
| Management | Dedicated application |
| Management | CLI - Command Line Interface |
| Networking standards | IEEE 802.3af,IEEE 802.3at |
| Number of CPU cores | 4 |
| Number of SSDs installed | 2 |
| Operating system installed | RouterOS |
| Operating temperature (T-T) | -40 - 70 |
| Output voltage | 12 - 57 |
| Power consumption (typical) | 25 |
| Power source type | DC, PoE |
| Processor cores | 4 |
| Processor frequency | 1400 |
| Processor model | Annapurna Labs Alpine AL21400 |
| Product colour | Silver |
| RAM memory | 1GB |
| RS-232 ports | 1 |
| SIM card slot | No |
| SSD capacity | 60 |
| Storage media | SSD |
| Temperature monitoring | Yes |
| Type of case | Metal |
| Type of case | Rack (1U) |
| Type of device power supply | Power supply |
| Voltage monitoring | Yes |
| Width | 444 |
