Product description
Brand

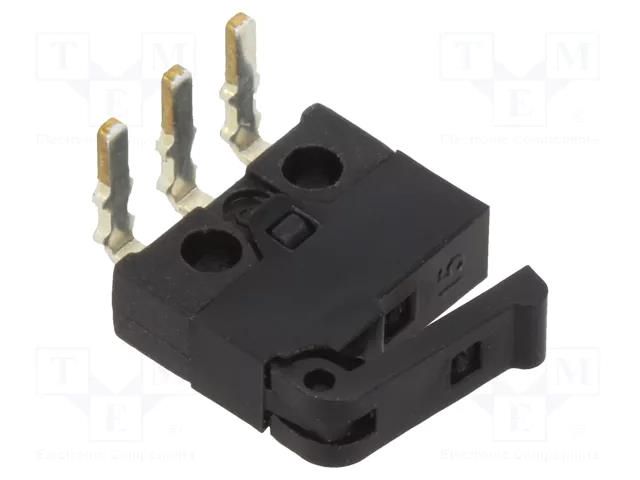

Microswitch SNAP ACTION; 0.5A/30VDC; SPDT; Rcont max: 100mΩ; PCB KNITTER-SWITCH
Useful information
Specifications
Supplier product description
Microswitch SNAP ACTION; 0.5A/30VDC; SPDT; Rcont max: 100mΩ; PCB
Useful information
Supplier parameters
NomNr
DM-SSM01DL2
Brand
KNITTER-SWITCH
Supplier's product code
DM-SSM01DL2
Product ID
U-2358495
Body colour
black
Body dimensions
8.2x6x2.7mm
Body material
PBT
Button material
PBT
Contact plating
silver plated
Contacts configuration
SPDT
DC contacts rating @R
0.5A / 30V DC
Illumination
none
Leads
flat pin
Manufacturer
KNITTER-SWITCH
Manufacturer series
DM-SSM
Max. contact resistance
:100mΩ
Mechanical durability
300000 cycles
Mounting
PCB
Number of positions
2
Operating Force
0.5N
Operating temperature
-20...70°C
Stable positions number
1
Switching method
ON-(OFF)
Terminal pitch
2.5mm
Type of switch
microswitch SNAP ACTION
