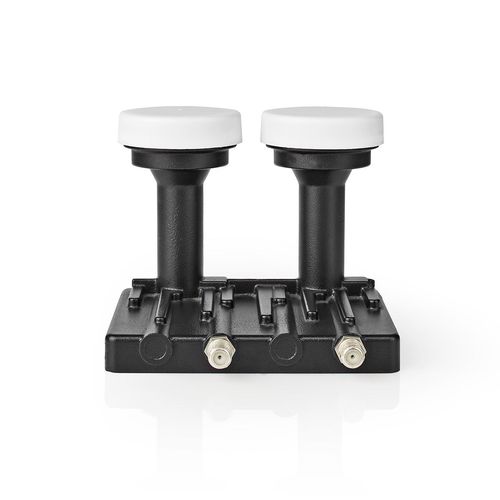

LNB | Twin Monoblock 6.0° | Output connection: 2x F-Connector | Noise figure range: 0.85 dB | Conversion gain: 52 - 67 dB | Black | Suitable for: Astra+ / Hotbird
Product Code: SLNBTM60BK
More similar products
Delivery terms
2024-08-16 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
LNB | Twin Monoblock 6.0° | Output connection: 2x F-Connector | Noise figure range: 0.85 dB | Conversion gain: 52 - 67 dB | Black | Suitable for: Astra+ / Hotbird
Specifications
SKU
U-2584977
Barcodes
5412810320882
Product code
SLNBTM60BK
Supplier product description
Mount this Nedis LNB twin monoblock 6.0 on installations that require superior signal strength and quality. It reduces the noise figure, ranging from 0.2 dB to 0.85 dB.
Connect the twin monoblock to the satellite receivers through a multiswitch.
The monoblock offers signals on 4 levels: vertical high and low band, horizontal high and low band.
It is suitable for connecting 1 satellite receiver to your satellite dish with a diameter of 90 to 120 cm.
Supplier parameters
Product code
SLNBTM60BK
Colour
Black
Conversion gain
52 - 67 dB
Cross polarization
20 dB
Current consumption
0.17 A
Gain flatness 26 MHz bandwidth
Ā± 0,5 dB
High band switching
22 kHz
Image rejection (Min.)
40 dB
Input frequency range high band
11.7 - 12.75 GHz
Input frequency range low band
10.7 - 11.7 GHz
LNB type
Twin Monoblock 6.0Ā°
Local oscillator frequency phase noise
-80 dB c/Hz @ 10 kHz (max.)
Low band switching
0 kHz
Material
ABS;Metal
Noise figure range
0.85 dB
Number of products in package
1 pcs
Operating temperature range
-35 - 70 Ā°C
Output connection
2x F-Connector
Output frequency range high band
1100 - 2150 GHz
Output spurious
-53 dB
Polarity switching voltage horizontal
DC 16.0 - 20.0 V
Polarity switching voltage vertical
DC 11.0 - 14.0 V
Satellite accessory type
LNB
SmartLife
No
Suitable for
Astra+;Hotbird
Supplier's product code
SLNBTM60BK
Product ID
U-2584977
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
