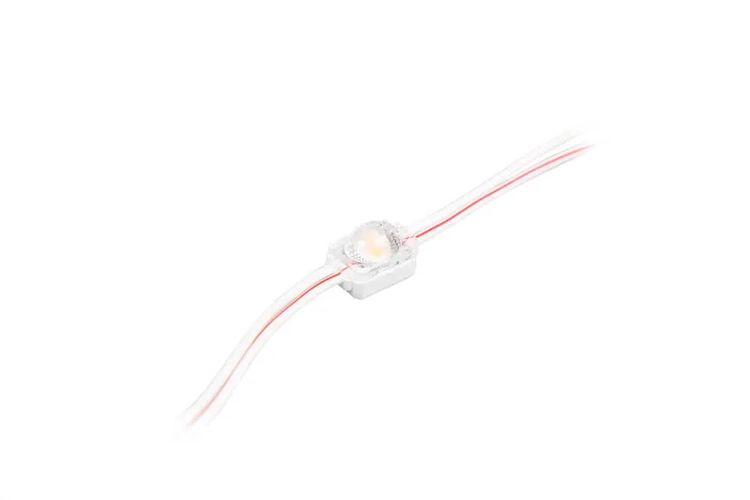

Led module, 12Vdc, 0.24W, AXS-1, 25lm, 4000K, asymmetrical lens – 183° x 142°, IP67, BERGMEN
Product Code: 01-001-064-04
Brand
More similar products
Pickup in department 1-5 b.d.
 >10 pcs | Central Warehouse |
 Not available | Tallinn Office |
Home delivery 1-5 b.d.
Delivery to DPD Pickup locations 1-5 b.d.
Products purchased together
Delivery terms
Pickup in department
Pickup in department For free
Orders are processed and shipped on weekdays from 8:00 a.m. to 5:00 p.m.
When your order is ready for collection, we will inform you by SMS and e-mail.
Quantity in shop
| >10 pcs | Central Warehouse |
| Not available | Tallinn Office |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
Weight
0.0016 kg.
Brand
Technical data:
| Voltage | 12Vdc |
| Power | 0,24W |
| Current | 0,02A |
| Light output | 25lm |
| Color temperature | 4000K |
| Beam angle | 183° x 142° |
| CRI: RA | ≥75 |
| Lifetime | 50000h |
| LED | SMD 2835 |
| Wire between modules | 50mm |
| Working temperature | -25 ~ 60°C |
| Storage temperature | -25 ~ 70°C |
| Ingress protection ratio | IP67 |

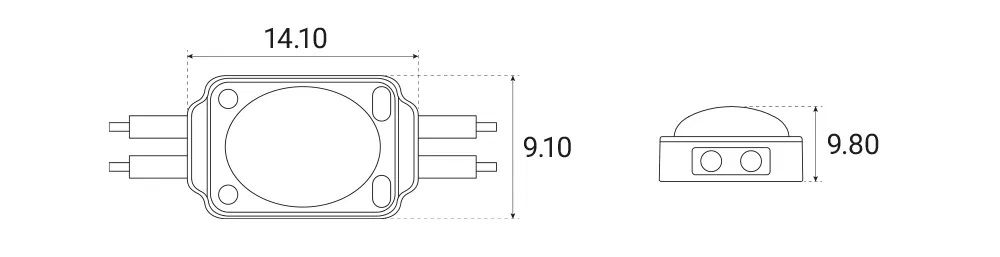

| Dimensions | 14.1 x 9.1 x 9.8 mm |
Specifications
SKU
341781
Weight
0.0016 kg.
Barcodes
5903268411876
Power, W
0.24
Brand
IP class
IP67
LED color
Cold white
LED type
SMD2835
Product code
01-001-064-04
Power, W
0.24
Supplier product description
A small 1-diode module with an asymmetrical lens – a solution for all small elements that require strong and diffused light.
CRI - ?75
IP - 67
Beam angle - 183° x 142°
Power - 0,24 W
Voltage - 12 V DC
Luminous flux - 25 lm
Storage temperature - -25~70°C
LED type - 1 x 2835 SMD
Warranty - 60 Months
Size - 14,1 x 9,1 x 9,8 mm
Color - Natural white
CRI - ?75
IP - 67
Beam angle - 183° x 142°
Power - 0,24 W
Voltage - 12 V DC
Luminous flux - 25 lm
Storage temperature - -25~70°C
LED type - 1 x 2835 SMD
Warranty - 60 Months
Size - 14,1 x 9,1 x 9,8 mm
Color - Natural white
Supplier parameters
Beam angle
183° x 142°
Color
Natural white
CRI
≥75
IP
67
LED type
1 x 2835 SMD
Luminous flux
25 lm
Power
0,24 W
Size
14,1 x 9,1 x 9,8 mm
Storage temperature
-25~70°C
Voltage
12 V DC
Warranty
60 Months
