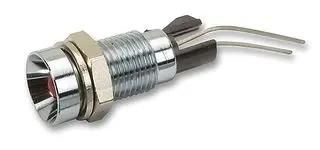

LED INDICATOR, 5MM, RED
Product Code: 2664.8021
Brand
More similar products
Delivery terms
2024-07-22 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 38 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
LED INDICATOR, 5MM, RED; LED Colour:Red; Operating Voltage:2.25VDC; Mounting Hole Dia:8mm; Forward Current If:20mA; Luminous Intensity:5mcd; IP / NEMA Rating:Not Rated; Product Range:-; SVHC:No SVHC (15-Jan-2019); Bezel Diameter:9.5mm; Body Plating:Bright Chrome; Bulb Size:5mm; External Diameter:9.5mm; External Length / Height:23.3mm; Fixing Hole Diameter:8.2mm; Forward Current If Max:20mA; Forward Current If(AV):10mA; Forward Voltage:2.25V; Forward Voltage VF Max:1.6V; LED / Lamp Size:5mm; Luminous Intensity Typ:6mcd; Operating Temperature Max:100┬░C; Operating Temperature Min:-25┬░C; Operating Temperature Range:-25┬░C to +100┬░C; PIV Max:5V; Peak Forward Current:50mA; Thread Pitch:0.75mm; Thread Size:M8; Viewing Angle:60┬░; Voltage Vf Typ:1.6V; Wavelength Typ:700nm
Useful information
Supplier parameters
Product code
2664.8021
Brand
MENTOR
Supplier's product code
1215777
Product ID
U-609634
