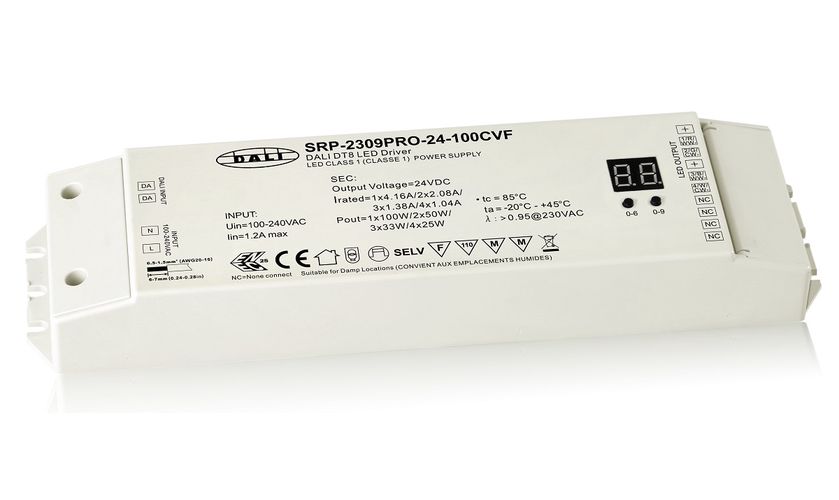

LED driver 24Vdc, 100W, DALI DT8 CCT/RGBW/XY, 4 channels, Sunricher
Product Code: SRP-2309PRO-24-100CV
Pickup in department 1-5 b.d.
 >10 pcs | Central Warehouse |
| 1 pcs | Tallinn Office |
Home delivery 1-5 b.d.
Delivery to DPD Pickup locations 1-5 b.d.
Delivery terms
Pickup in department
Pickup in department For free
Orders are processed and shipped on weekdays from 8:00 a.m. to 5:00 p.m.
When your order is ready for collection, we will inform you by SMS and e-mail.
Quantity in shop
| >10 pcs | Central Warehouse |
| 1 pcs | Tallinn Office |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
Weight
0.525 kg.
Brand
- 4-in-1 DALI DT8 LED driver, max. output power 100W
- Certified IEC 62386-101: 2014, IEC 62386-102: 2014, IEC 62386-207 Ed2, IEC 62386-209: 2011
- Built-in DALI-2 interface, DALI DT8 device
- 4-channel DC 24 V voltage
- Class 1 power supply, fully insulated plastic housing
- Power factor > 0.95, efficiency > 90%
- 4 versatile device types in one: basic N, Tc, XY coordinates, RGBW, can be set with push buttons
- DALI DT8 device for controlling RGBW outputs or tunable white outputs via a single DALI address
- Only one address is needed to control 4 outputs individually using primary N mode
- Control of four PWM outputs via DALI Type 8 device
- Colour control as defined in DALI specification Type 8 device
- Colour type basic N, Tc, XY coordinate, RGBW can be set by manual setting buttons
- Supports DT8 device commands, compatible with DALI master devices supporting DT8 commands
- Configuration via DALI host USB interface
- Digital numeric display for manual DALI address setting
- Compatible with universal AC switch
- Complies with the safety extra-low voltage standard
- Power overload protection, temperature protection
- IP20, suitable for indoor LED lighting
- 5-year warranty
The description was translated using an automatic translator. If you notice any discrepancies, please notify us by email: [email protected].
